SPCT 50/30 300/5A VA 5 CL 1-CU-ROHS

Overview

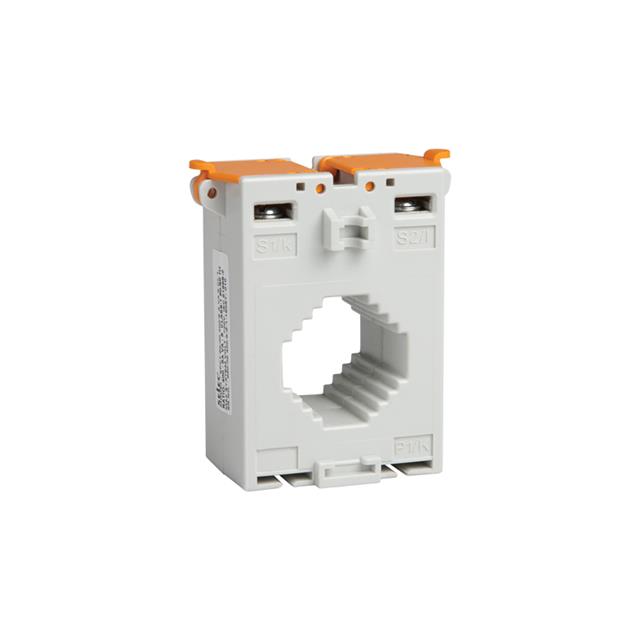

The SPCT 50/30 300/5A VA 5 CL 1-CU-ROHS is a bus bar current transformer manufactured by Selec Controls USA Inc. It features a 300/5 A ratio and a 5 VA burden rating with Class 1 accuracy. The unit supports 50Hz to 60Hz frequencies and utilizes a DIN rail mounting style. The inner dimension specifications are 50/30, designed for direct bus bar integration.

Feature Summary

• Bus bar current transformer design for direct integration
• DIN rail mounting configuration
• Class 1 accuracy rating

Applications

• Electrical power monitoring systems
• Industrial control panels
• Energy management meters

Procurement Notes

Verify the specific part number suffix against official Selec Controls documentation to confirm accuracy class and burden ratings. Ensure the inner dimensions match the installation bus bar size. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.

Selection Notes

Select this component based on the required 300/5 A transformation ratio and 5 VA burden capacity. Verify that the 50/30 mm inner dimension accommodates the existing bus bar geometry. Ensure the Class 1 accuracy meets the precision requirements of the connected measurement device.

Part Context

This model belongs to the SPCT series of current transformers from Selec Controls. The series includes various ratios and accuracy classes tailored for different industrial applications. The SPCT designation indicates a specific form factor optimized for DIN rail installation in electrical enclosures.

Replacement Considerations

Compatible substitutes include other SPCT series variants such as SPCT 50/30 250/5A or SPCT 50/30 400/5A, provided the primary current rating and inner dimensions align with the system requirements. Cross-reference exact specifications with official Selec documentation.
