Product Detailed Parameters
- Description：CURR SENSE XFMR 80A DIN RAIL
- Series：SPCT
- Mfr：Selec Controls USA Inc.
- Package：Box
- Frequency Range：50Hz ~ 60Hz
- Type：Non-Invasive (Solid Core)
- Inductance：-
- ET (Volt-Time)：-
- Current Ratio：80:05:00
- DC Resistance (DCR)：-
- Ratings：-
- Mounting Type：DIN Rail
- Size / Dimension：1.969" L x 1.693" W (50.00mm x 43.00mm)
- Height - Seated (Max)：2.953" (75.00mm)
- Termination Style：Terminal Block
- Turns Ratio - Primary:Secondary：-
- Current Rating (Amps)：80 A
Download product information
Overview

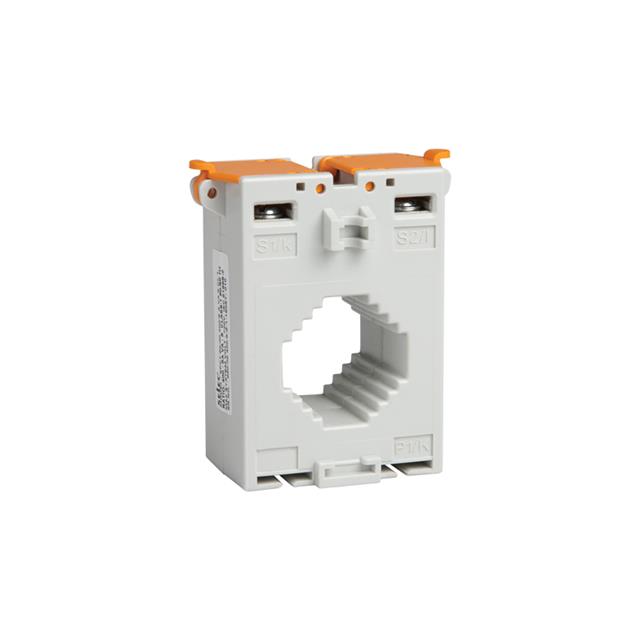

The SPCT 50/30 80/5 A VA 1 CL 1-CU-ROHS is a current sense transformer manufactured by Selec Controls USA Inc. It features an 80 A primary current rating and a 200/5 secondary ratio configuration, designed for 50Hz to 60Hz frequency operation. The device utilizes a solid core, non-invasive bus bar design with a 50/30 mm inner dimension. It offers a 1 VA burden capacity and Class 1 accuracy. The unit supports DIN rail mounting and complies with RoHS standards.
Feature Summary
- Non-invasive solid core construction for bus bar integration
- DIN rail mounting capability for secure installation
- Class 1 accuracy rating for precise measurement
Applications
- Electrical energy metering systems
- Power quality monitoring equipment
- Industrial control panel instrumentation
Procurement Notes
Verify the specific part number suffix against official Selec Controls documentation to confirm RoHS compliance status and exact mechanical dimensions. Ensure the selected variant matches the required primary current rating of 80 A and the necessary accuracy class for the intended application environment before finalizing procurement orders.
Selection Notes
Select this component when a non-invasive current sensing solution is required for bus bar applications. The 50/30 mm aperture accommodates standard rectangular conductors. Confirm that the system burden does not exceed the 1 VA limit and that the operating frequency aligns with 50Hz or 60Hz requirements for optimal performance.
Part Context
This model belongs to the SPCT series of current transformers from Selec Controls USA Inc. The series provides various primary current ratings and accuracy classes for different measurement needs. The SPCT 50/30 designation indicates the physical aperture size, while the electrical parameters define its operational range within power distribution networks.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult official Selec Controls documentation for direct equivalents or cross-reference options based on identical technical specifications.
