SPD125R-564M

Fixed Inductors Overview

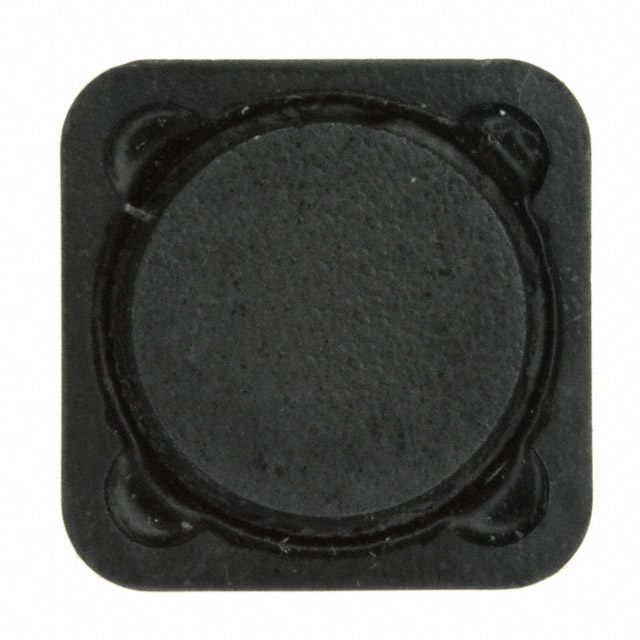

The Delevan SPD125R-564M is a surface-mount power inductor designed for high-frequency switching applications. It features a ferrite core and a shielded construction to minimize electromagnetic interference. The component provides an inductance of 560 µH with a tolerance of ±20%. It supports a maximum DC current of 550 mA and exhibits a maximum DC resistance of 1 ohm. The physical dimensions are standardized at 12 mm in length, 12 mm in width, and 6 mm in height.

Fixed Inductors Feature Summary

• Shielded magnetic structure reduces external electromagnetic interference
• Ferrite core material ensures stable performance across operating temperatures
• Surface-mount design facilitates automated PCB assembly processes

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input chokes
• Signal processing circuit impedance matching

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official API Delevan documentation to confirm specifications. Ensure compatibility with RoHS requirements if applicable to your region. Check for any specific handling instructions regarding surface-mount thermal profiles during soldering. Confirm availability through authorized distributors as stock levels may vary.

Fixed Inductors Selection Notes

Select this component when a 560 µH inductance value is required within a compact 12x12 mm footprint. Consider the 550 mA current rating to ensure operation remains within safe limits without saturation. The shielded design is suitable for dense layouts where magnetic coupling must be controlled. Verify that the 1 ohm DC resistance aligns with efficiency targets for the target power stage.

Fixed Inductors Part Context

This part belongs to the SPD125R series of shielded power inductors from API Delevan. The series is characterized by its robust ferrite core construction and standardized SMD package dimensions. These components are engineered for reliability in demanding power electronics environments, offering consistent electrical characteristics across production batches.

Fixed Inductors Replacement Considerations

Direct substitutes include other shielded SMD power inductors with identical 560 µH inductance, similar current ratings, and compatible 12x12 mm footprints. Verify pinout compatibility and mechanical height constraints before substitution. Cross-reference datasheets for thermal performance and saturation current curves to ensure equivalent functionality.
