SPDL121006-2000-2P-T

Overview

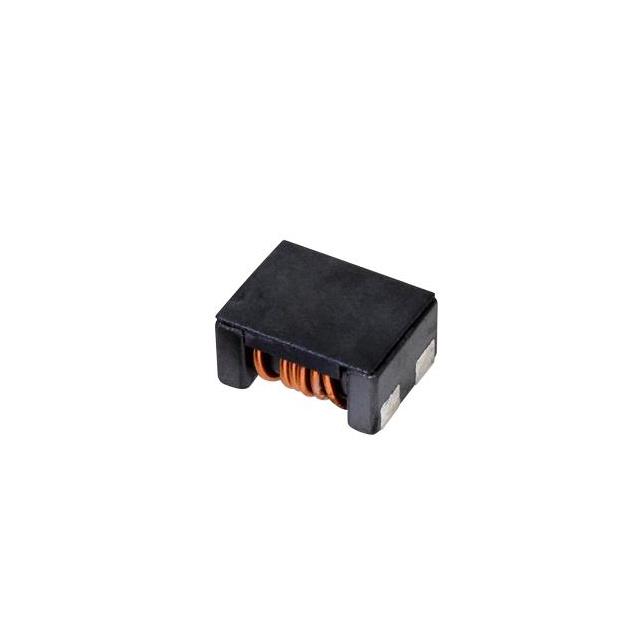

The SPDL121006-2000-2P-T is a surface-mount common mode filter choke from the SPDL Series II. It features a two-line configuration with an impedance of 2000 ohms at 100 MHz and a maximum DC current rating of 1.8 mA. The component measures 12.1 mm in length, 10 mm in width, and 6.6 mm in height. It operates within a temperature range of -40°C to +125°C and has a maximum DC resistance of 6 ohms.

Feature Summary

• Ultra-compact SMD design for space-constrained PCB layouts
• High impedance noise suppression for differential signal lines
• Wirewound core construction for stable filtering performance

Applications

• Noise suppression in high-speed digital interfaces
• EMI filtering for compact consumer electronics
• Signal integrity protection in portable devices

Procurement Notes

Verify the specific impedance tolerance and DC current rating against the official datasheet before integration. Confirm that the reel packaging quantity matches production requirements. Ensure the supplier provides RoHS compliance documentation consistent with the manufacturer's specifications for this part number.

Selection Notes

Select this component when ultra-compact dimensions are critical and low current operation is acceptable. The 2000 ohm impedance targets high-frequency noise attenuation. Verify that the 1.8 mA current limit aligns with the circuit's operational requirements to prevent saturation or excessive voltage drop.

Part Context

This part belongs to the SPDL Series II, which focuses on ultra-compact form factors for modern electronics. It complements other series like SPDL3216 and SPDL3225 by offering larger physical dimensions but higher impedance capabilities suitable for different noise profiles and current loads.

Replacement Considerations

Check for direct substitutes within the SPDL121006 family with adjusted impedance values. Verify pin compatibility and footprint dimensions when considering alternative manufacturers' common mode chokes.
