Product Detailed Parameters
- Description：CMC 200MA 2LN 1KOHM SMD AEC-Q200
- Series：-
- Mfr：Signal Transformer
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：200mA
- DC Resistance (DCR) (Max)：1Ohm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height (Max)：0.087" (2.20mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：1 kOhms @ 100 MHz
Download product information
Overview

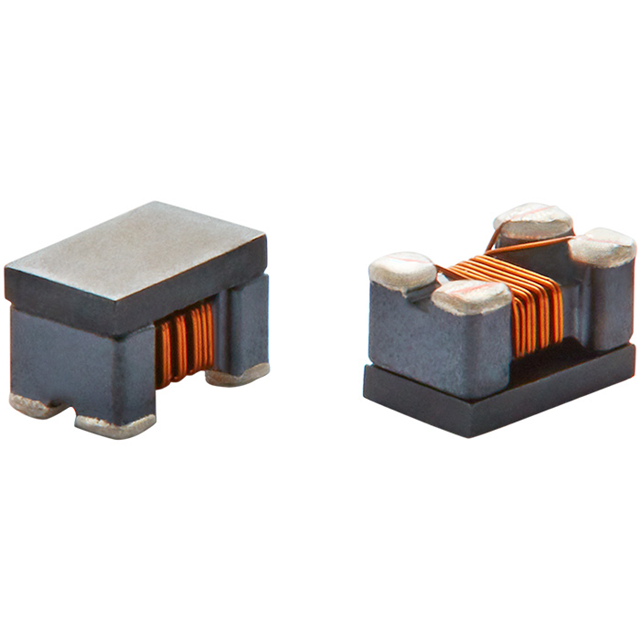

The SPDL3216-102-2P-T is a two-line surface mount common mode choke from the SPDL series by Signal Transformer. It features a ferrite core and unshielded construction within a 3216 metric package (3.2 mm x 1.6 mm x 2.2 mm). The component provides an impedance of 1 kOhm at 100 MHz with a tolerance of +/-50%. It supports a maximum DC current of 200 mA and has a maximum DC resistance of 1 Ohm. Rated for AEC-Q200 automotive standards, it operates between -40°C and +125°C.
Feature Summary
- Ultra-compact SMD form factor designed for high-density PCB layouts
- AEC-Q200 qualified for automotive reliability requirements
- Ferrite core construction for effective noise suppression
Applications
- Automotive infotainment systems
- High-speed signal transmission lines
- Network signal EMI suppression
Procurement Notes
Verify the specific impedance tolerance and DC resistance values against the manufacturer's latest datasheet before integration. Confirm that the 3216 footprint dimensions align with the target PCB design. Ensure the 200 mA current rating meets the circuit's operational requirements under all thermal conditions.
Selection Notes
Select this component for applications requiring small footprints and automotive-grade certification. Compare the 1 kOhm impedance at 100 MHz against other SPDL variants to match specific frequency filtering needs. Consider the 200 mA current limit when designing power or data lines to prevent saturation.
Part Context
This part belongs to the SPDL series of ultra-compact SMD common mode chokes. The series is engineered for EMI suppression in differential mode noise environments. It complements other models like the SPDL3216-361-2P-T and SPDL3216-601-2P-T, which offer different impedance levels within the same physical package constraints.
Replacement Considerations
Direct substitutes include SPDL3216-361-2P-T and SPDL3216-601-2P-T from the same manufacturer. These alternatives share identical packaging and mounting characteristics but differ in impedance specifications. Verify functional equivalence regarding current handling and frequency response before substitution.
