Product Detailed Parameters
- Description：CMC 11UH 300MA 2LN 500OHM SMD
- Series：-
- Mfr：Signal Transformer
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：300mA
- DC Resistance (DCR) (Max)：400mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.130" L x 0.098" W (3.30mm x 2.50mm)
- Height (Max)：0.106" (2.70mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：11 µH @ 100 kHz
- Impedance @ Frequency：500 Ohms @ 10 MHz
Download product information
Overview

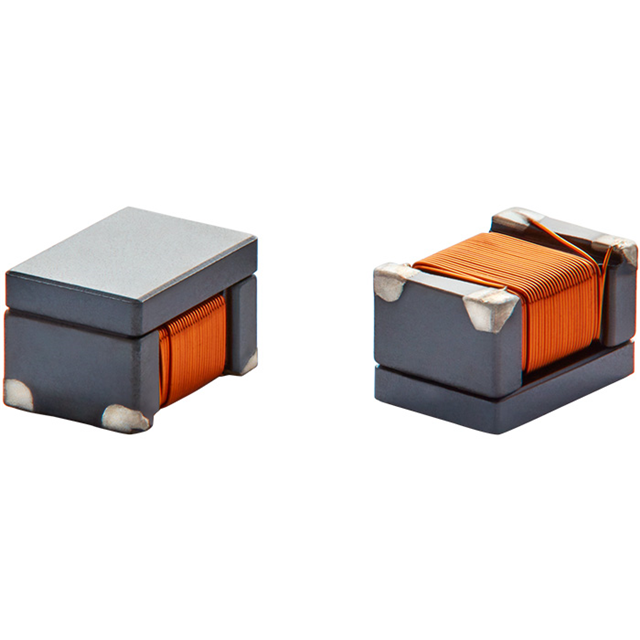

The SPDL3225-110-2P-T is a two-line surface mount common mode choke from the SPDL series by Signal Transformer. It features an inductance of 11 µH with a tolerance of +50%/-30% at 100 kHz and offers an impedance of 500 Ohms. The component supports a maximum DC current of 300 mA and has a maximum DC resistance of 400 mOhms. Designed for PCB mounting, it operates within a temperature range of -40°C to +125°C and utilizes a 3225 metric package.
Feature Summary
- Provides common mode noise suppression for dual-line signal circuits
- Utilizes compact surface mount design for space-constrained applications
- Engineered for stable performance across wide industrial temperature ranges
Applications
- High-speed data line filtering
- USB interface noise suppression
- HDMI signal integrity protection
- General purpose EMI mitigation in consumer electronics
Procurement Notes
Verify the specific manufacturer designation, as this part number is associated with both Bel Fuse (Signal Transformer) and other distributors. Confirm RoHS compliance status and exact lead times directly with the authorized supplier or original manufacturer documentation before finalizing procurement plans.
Selection Notes
Select this component when a low-profile SMD choke is required for differential signal lines. Ensure the 300 mA current rating meets the circuit's operational requirements. Verify that the 500 Ohm impedance at the target frequency provides sufficient attenuation for the specific noise profile encountered in the application.
Part Context
This component belongs to the SPDL series of ultra-compact SMD common mode chokes. The series is designed to replace larger through-hole components, enabling higher density PCB layouts. It serves as a critical passive element for maintaining signal integrity in high-speed digital interfaces.
Replacement Considerations
Cross-reference with SPDL3225-220-2P-T for higher inductance needs or SPDL3225-110-2P for bulk packaging variations. Verify pin compatibility and impedance curves against alternative suppliers' offerings to ensure electrical equivalence.
