Product Detailed Parameters

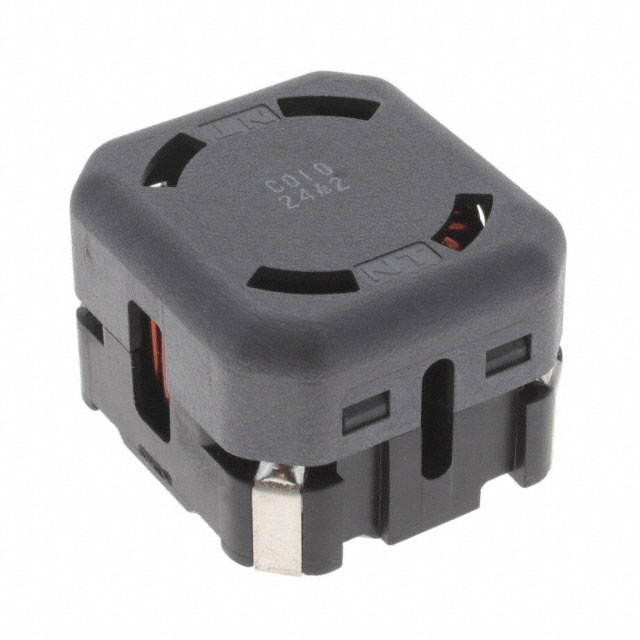

- Description：CMC 1UH 10A 2LN SMD
- Series：SPF
- Mfr：KEMET
- Package：Tray
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：150V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：1.181" L x 1.063" W (30.00mm x 27.00mm)
- Height (Max)：0.807" (20.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：1 µH @ 10 kHz
- Qualification：-
- Grade：-
Download product information
Overview
The KEMET SPF-100-1R1A010 is a DC line filter classified as a common mode choke. It features an inductance of 1 uH and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 12 mOhms and a rated voltage of 150 V. Designed for surface mount (SMD/SMT) termination, it utilizes a two-line configuration to suppress electromagnetic interference in direct current circuits.
Feature Summary
- Provides common mode noise suppression for DC power lines
- Engineered for surface mount integration into circuit boards
- Supports high current handling capabilities up to 10 A
Applications
- DC power supply input filtering
- Electromagnetic interference suppression in electronic equipment
- Signal integrity protection in data transmission lines
Procurement Notes
Verify the current manufacturing status before procurement as this part number may be obsolete or discontinued. Confirm availability through authorized distributors or check for manufacturer-recommended substitutes if original stock is unavailable. Ensure the replacement component matches the required electrical specifications and physical footprint for seamless integration.
Selection Notes
Select this component for applications requiring common mode chokes with specific inductance and current ratings. Consider the surface mount package type for automated assembly processes. Evaluate the DC resistance and voltage ratings against the system's operational requirements to ensure reliable performance under load conditions.
Part Context
This component belongs to the KEMET SPF series of DC line filters. These products are designed to mitigate common mode noise in power systems. The series typically offers various inductance values and current ratings to suit different application needs within the passive components category.
Replacement Considerations
Manufacturer recommended substitutes are available for this obsolete part number. Verify that any alternative component meets the same inductance, current, and voltage specifications to maintain circuit functionality.
