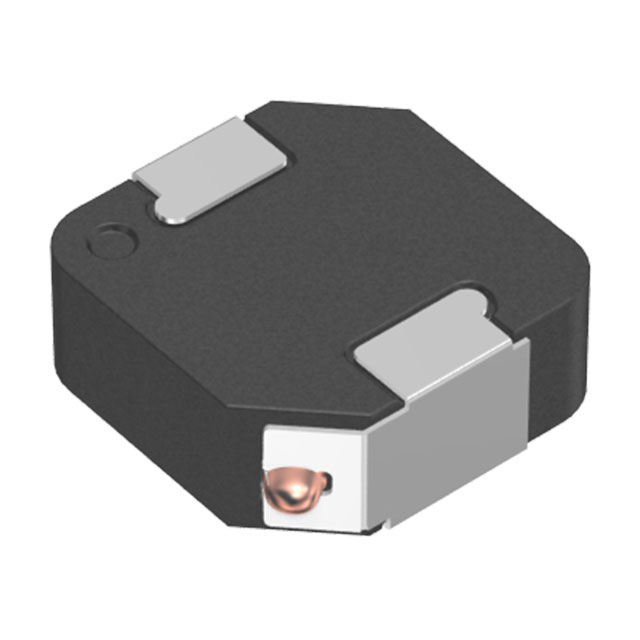

SPM10040T-1R0M-HZ

$1.58

Description：FIXED IND 1UH 23.6A 3.19MOHM SMD
Series：SPM-HZ
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8bf1b43383c7 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPM10040T-1R0M-HZ is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 1UH 23.6A 3.19MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SPM10040T-1R0M-HZ

Description：FIXED IND 1UH 23.6A 3.19MOHM SMD
Series：SPM-HZ
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Metal
Inductance：1 µH
Tolerance：±20%
Current Rating (Amps)：23.6 A
Current - Saturation (Isat)：15A
Shielding：Shielded
DC Resistance (DCR)：3.19mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max)：0.157" (4.00mm)
Features：-

Fixed Inductors datasheet and documents for SPM10040T-1R0M-HZ

SPM10040T-1R0M-HZ

Fixed Inductors Overview

The TDK SPM10040T-1R0M-HZ is a fixed surface-mount power inductor from the SPM-HZ series, designed for high-current applications. It features a 1.0 µH nominal inductance with a ±20% tolerance and utilizes a metal drum core wound construction. The component offers a maximum DC resistance of 4.2 mΩ and supports a rated current of 13 A, with a saturation current of 8.5 A. Measuring 10.70 mm x 10.00 mm x 4.00 mm, it operates within a temperature range of -40°C to 125°C and is tested at 100 kHz.

Fixed Inductors Feature Summary

Shielded magnetic design minimizes electromagnetic interference in dense layouts
High saturation current capability ensures stable performance under heavy loads
AEC-Q200 qualified for automotive reliability standards
RoHS compliant construction supports environmental regulations

Fixed Inductors Applications

Automotive DC-DC converter circuits
On-board charger power stages
Industrial power supply filtering
High-efficiency point-of-load regulation

Fixed Inductors Procurement Notes

Verify the specific suffix HZ to confirm the automotive-grade variant and AEC-Q200 qualification status. Check the official manufacturer documentation for the most recent production status, as this part may be subject to discontinuation notices or lifecycle changes. Ensure compatibility with standard reflow soldering profiles for surface mount assembly.

Fixed Inductors Selection Notes

Select this component when a compact 10x10mm footprint is required alongside high current handling capabilities. The 1.0 µH value suits intermediate frequency switching applications. Compare the 8.5 A saturation limit against peak load requirements to prevent inductance collapse. Consider the low DCR for minimizing conduction losses in efficiency-critical designs.

Fixed Inductors Part Context

This inductor belongs to the SPM-HZ series, a line of automotive power inductors manufactured by TDK Corporation. The series is characterized by its shielded structure and robust metal core technology, specifically engineered to meet the rigorous thermal and mechanical demands of modern automotive electronics and high-density power conversion systems.
