SPMS2006

Overview

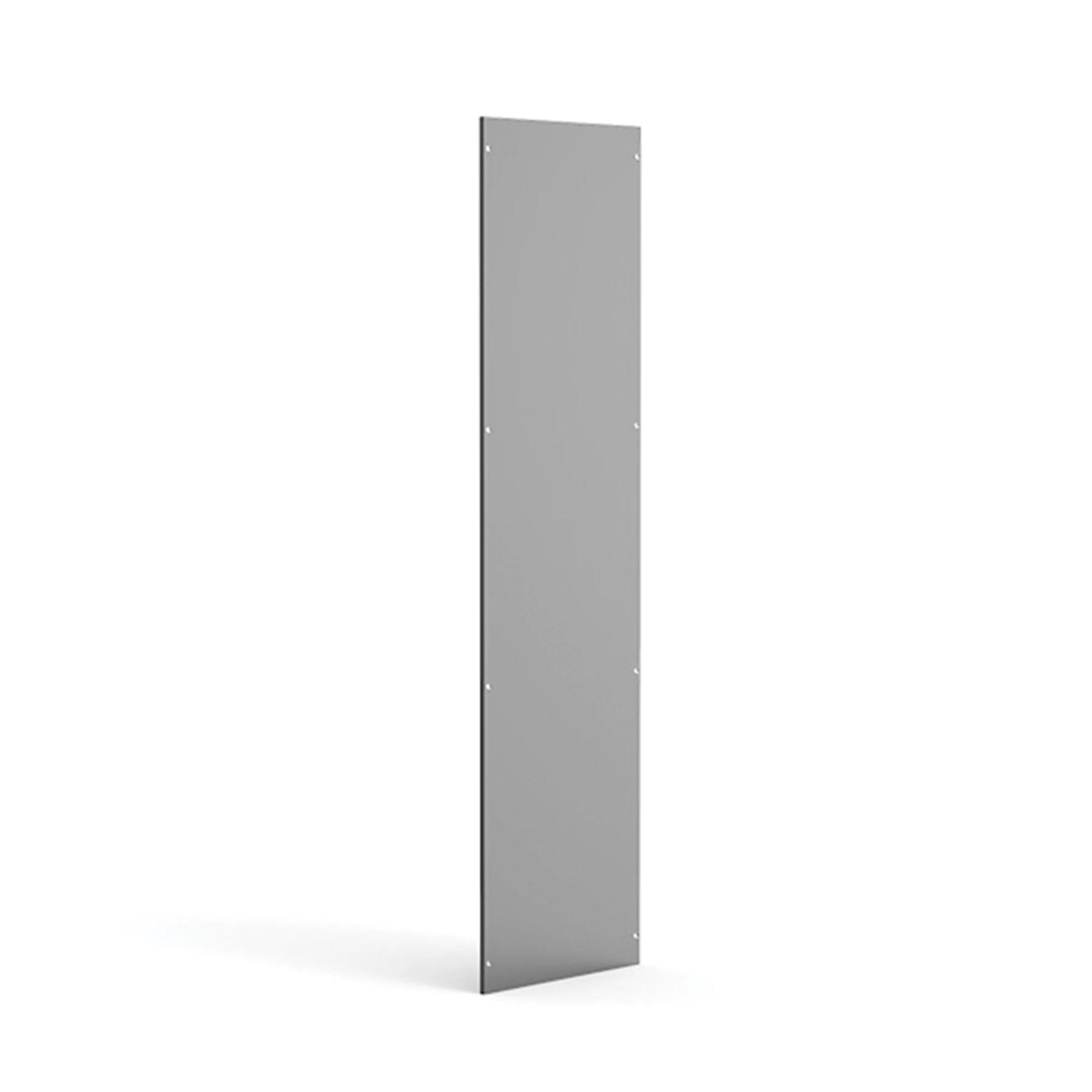

The SPMS2006 is a side panel component for nVent Hoffman floor-standing enclosures. It measures 2000 mm in height and 600 mm in width. Constructed from 16 gauge 304 stainless steel with a brushed finish, it supports IEC standard dimensions. The panel features an extruded one-piece polyurethane gasket to maintain ingress protection ratings when assembled. It is designed for easy single-person assembly using eight screws.

Feature Summary

• Constructed from 16 gauge 304 stainless steel with a brushed finish
• Includes an extruded one-piece polyurethane gasket for sealing
• Designed for easy single-person assembly using eight screws
• Maintains ingress protection ratings for floor-standing enclosures

Applications

• Side enclosure for industrial floor-standing systems
• Bayable combinable enclosure assemblies
• IEC standard equipment housing

Procurement Notes

Verify the specific material grade required for your application, as variants exist in 304 and 316L stainless steel. Confirm that the SPMS2006 designation corresponds to the 304 grade version. Ensure compatibility with the specific enclosure series intended for use. Check for necessary mounting hardware availability if not included. Validate dimensional requirements against site constraints before ordering.

Selection Notes

Select this panel for applications requiring durable stainless steel construction in corrosive environments. The 304 grade offers standard corrosion resistance suitable for many industrial settings. Consider the 316L variant if exposure to harsher chemicals or marine conditions is expected. The brushed finish provides aesthetic consistency with matching front and rear panels. Ensure the 2000x600 mm footprint aligns with the overall system design.

Part Context

This component belongs to the SPM Series of side panels manufactured by nVent Hoffman. It is part of a modular system allowing for customizable floor-standing enclosure configurations. The series supports various widths and heights to accommodate different internal equipment layouts. It is designed to integrate seamlessly with other components in the Universal Free-Stand product line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Variants such as SPMS2006-316 offer 316L stainless steel construction but differ in material specification. Direct replacement requires matching the exact material grade and dimensional specifications of the original installation.
