SPRH125-102M

Fixed Inductors Overview

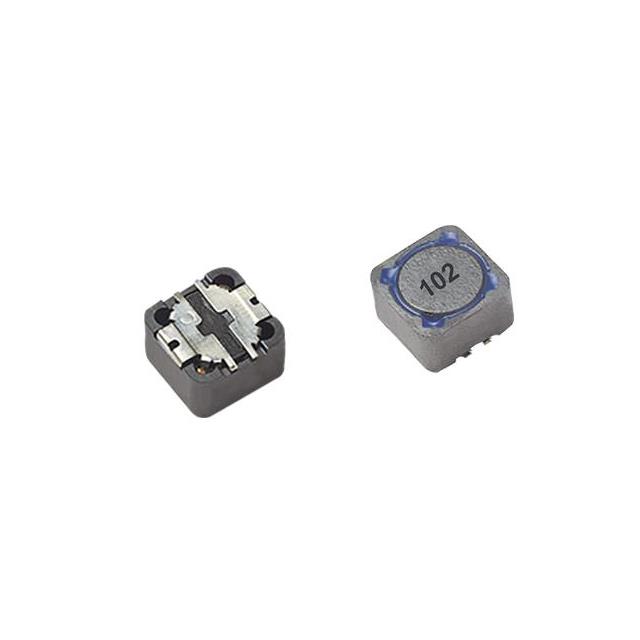

The CODACA SPRH125-102M is a fixed surface-mount power inductor from the SPRH125 series, designed for high-current applications. It features a shielded drum core wirewound construction with ferrite magnetic material. The component provides an inductance of 1 mH (1000 µH) with a tolerance of ±20%. It has a maximum DC resistance of 1.718 Ohms and supports a rated current of 0.61 A. The saturation current is specified at 0.61 A. Operating within a temperature range of -40°C to +125°C, it utilizes a 2-SMD package measuring 12.00mm x 12.00mm with a maximum height of 6.00mm.

Fixed Inductors Feature Summary

• Shielded drum core wirewound structure minimizes electromagnetic interference
• Ferrite core material ensures stable performance across wide temperature ranges
• Surface mount design facilitates automated SMT assembly processes

Fixed Inductors Applications

• Buck converter circuits
• Notebook PC power management
• LCD TV power supplies
• Game machine set-top boxes
• Network communication equipment

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical tolerances and packaging configurations. Ensure that the selected variant matches the required saturation current and DC resistance specifications for the target application circuit. Cross-reference the datasheet for moisture sensitivity level and reflow soldering profile requirements to guarantee reliable integration into the final electronic assembly.

Fixed Inductors Selection Notes

Select this component when a compact surface-mount solution with millihenry-level inductance is required for low-current buck converters. The 12x12mm footprint offers a balance between size and thermal dissipation. Consider the 1.718 Ohm DC resistance impact on efficiency and the 0.61 A saturation limit to prevent core saturation under peak load conditions during transient events.

Fixed Inductors Part Context

This inductor belongs to the SPRH125 series, which focuses on providing low DC resistance and high rated current capabilities for digital amplifier and general power supply applications. The series is characterized by its lead-free, RoHS-compliant manufacturing process and suitability for SMT production lines, serving markets such as automotive electronics, industrial control, and consumer electronics.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
