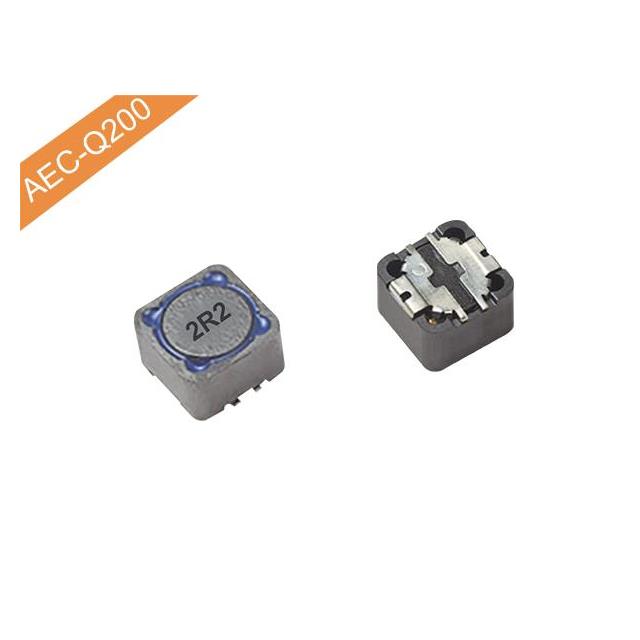

SPRH127-271M

$0.96

Description：SMD POWER INDUCTOR
Series：SPRH127
Mfr：CODACA
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cf6bdd591dbe Category: Fixed Inductors Brand: CODACA

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPRH127-271M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is SMD POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SPRH127-271M

Description：SMD POWER INDUCTOR
Series：SPRH127
Mfr：CODACA
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：270 µH
Tolerance：±20%
Current Rating (Amps)：1.4 A
Current - Saturation (Isat)：1.94A
Shielding：Shielded
DC Resistance (DCR)：456mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：2-SMD
Supplier Device Package：2-SMD
Size / Dimension：0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)：0.307" (7.80mm)
Features：Drum Core, High Current, Low DCR

Fixed Inductors datasheet and documents for SPRH127-271M

SPRH127-271M

Fixed Inductors Overview

The SPRH127-271M is a shielded drum core, wirewound power inductor manufactured by CODACA. It features an inductance of 270 µH with a tolerance of ±20%. The component supports a maximum DC current (Idc) of 1.4 A and has a maximum DC resistance (DCR) of 456 mΩ. It operates within a temperature range of -40°C to +125°C and is tested at a frequency of 100 kHz. The device complies with AEC-Q200 standards and utilizes ferrite core material.

Fixed Inductors Feature Summary

Magnetically shielded drum core construction
High current handling capability
Low DC resistance design

Fixed Inductors Applications

Buck converter circuits
Power supply filtering
Network communication equipment

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official CODACA documentation to confirm electrical ratings. Ensure the procurement channel provides traceable source documents. Confirm that the delivered components match the specified AEC-Q200 compliance and package dimensions. Request test reports for DCR and inductance values if required for quality assurance.

Fixed Inductors Selection Notes

Select this component for applications requiring high current density and magnetic shielding. The low DCR value minimizes power loss in power conversion stages. Verify that the 1.4 A current rating meets the circuit's peak and continuous load requirements. Consider the operating temperature range when designing thermal management solutions.

Fixed Inductors Part Context

This inductor belongs to the SPRH127 series from CODACA, designed for surface mount technology. The series offers various inductance values tailored for power electronics. The shielded structure reduces electromagnetic interference, making it suitable for dense PCB layouts in consumer and industrial electronics.
