SPX29151T5-L-1-8

Description：IC REG LINEAR 1.8V 1.5A TO263-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tube

SKU:6bb9fc28d765 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: MaxLinear, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPX29151T5-L-1-8 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists MaxLinear, Inc.. Its product description is IC REG LINEAR 1.8V 1.5A TO263-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for SPX29151T5-L-1-8

Description：IC REG LINEAR 1.8V 1.5A TO263-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tube
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：16V
Voltage - Output (Min/Fixed)：1.8V
Voltage - Output (Max)：-
Voltage Dropout (Max)：-
Current - Output：1.5A
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：-
Control Features：Enable
Protection Features：Over Current, Reverse Polarity, Transient Voltage
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount

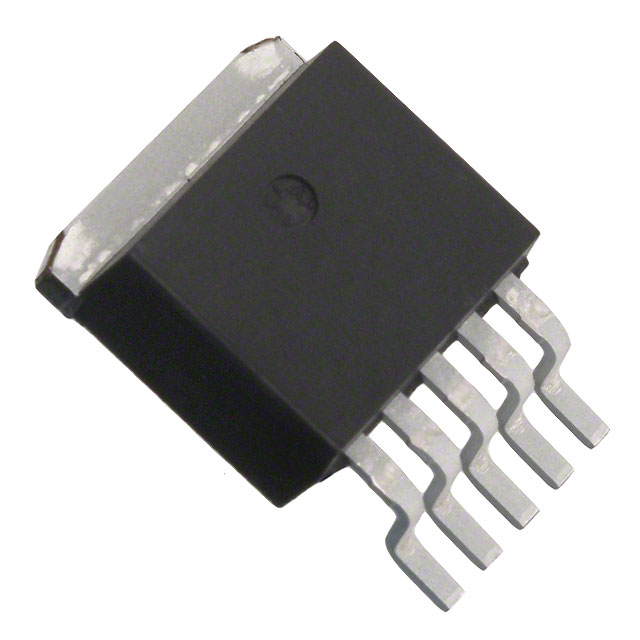

Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263-5
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for SPX29151T5-L-1-8

SPX29151T5-L-1-8

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The SPX29151T5-L-1-8 is a low dropout voltage regulator manufactured by MaxLinear. It provides a fixed output voltage of 1.8 V with a maximum output current capability of 1.5 A. The device is housed in a TO-263-5 surface-mount package and supports an operating temperature range from -40 °C to +125 °C. It features one fixed output channel.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Low dropout voltage regulation for efficient power conversion
High current delivery capability up to 1.5 amperes
Fixed output voltage configuration for stable supply rails

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable battery-powered equipment requiring stable voltage regulation
Battery chargers needing precise input-output voltage management
Laptop and notebook computer power distribution systems

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the manufacturer designation as MaxLinear or its predecessor entities, such as Exar or Sipex, due to historical corporate acquisitions affecting part labeling. Confirm the specific suffix indicates the 1.8 V fixed output variant. Check component status as discontinued or end-of-life listings may apply depending on the distributor source. Ensure the TO-263-5 package matches the required footprint for the design.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 1.8 V rail is required at currents up to 1.5 A. The TO-263-5 package offers thermal advantages over smaller SOT packages for high-current applications. Verify that the input voltage exceeds the minimum requirement for the 1.8 V output while staying within absolute maximum ratings. Consider the wide operating temperature range for industrial or automotive environments if applicable.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This regulator belongs to the SPX29151 series, which includes various fixed and adjustable output voltage options. The series is characterized by high current capability and low dropout performance. Other variants in the family provide different output voltages or adjustable settings using external resistors, sharing similar internal protection and regulation architectures.
