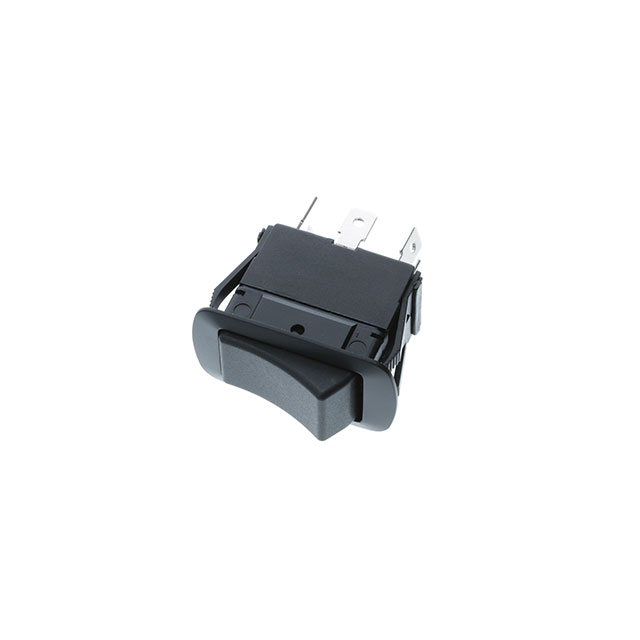

SRB1-2D-AC-1-NN

SRB1-2D-AC-1-NN is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is VAC SEALED IP56, DPDT ON-ON. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for SRB1-2D-AC-1-NN

• Description：VAC SEALED IP56, DPDT ON-ON
• Series：SRB1
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPDT
• Switch Function：On-On
• Current Rating (Amps)：16A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP56 - Dust Protected, Water Resistant
• Features：-
• Panel Cutout Dimensions：Rectangular - 36.60mm x 21.20mm
• Operating Temperature：-20°C ~ 85°C
• Approval Agency：CSA, cURus, ENEC

Rocker Switches datasheet and documents for SRB1-2D-AC-1-NN
