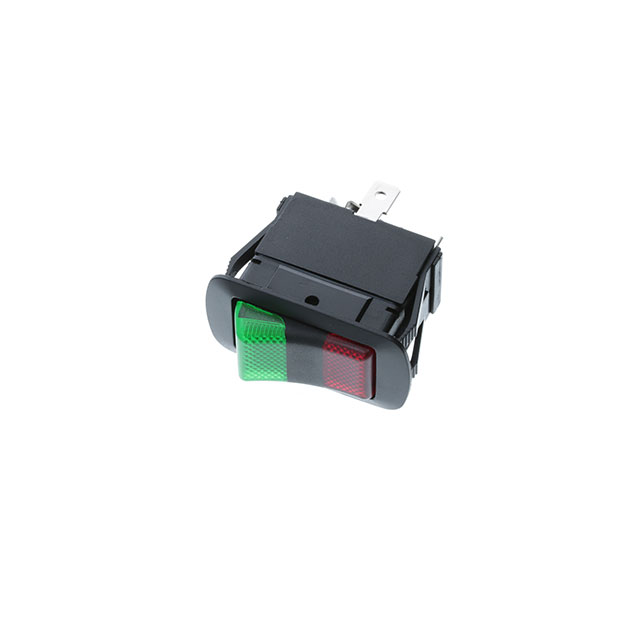

SRB3-1F-DC-1-RGL

SRB3-1F-DC-1-RGL is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH ROCKER SPDT 21A 14V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for SRB3-1F-DC-1-RGL

• Description：SWITCH ROCKER SPDT 21A 14V
• Series：SRB3
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPDT
• Switch Function：On-Off-On
• Current Rating (Amps)：21A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：14 V
• Actuator Type：Concave (Curved) - Illuminated
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：LED, Green/Red
• Illumination Voltage (Nominal)：14 VDC
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP56 - Dust Protected, Water Resistant
• Features：-
• Panel Cutout Dimensions：Rectangular - 36.60mm x 21.20mm
• Operating Temperature：-20°C ~ 85°C
• Approval Agency：cURus, ENEC

Rocker Switches datasheet and documents for SRB3-1F-DC-1-RGL
