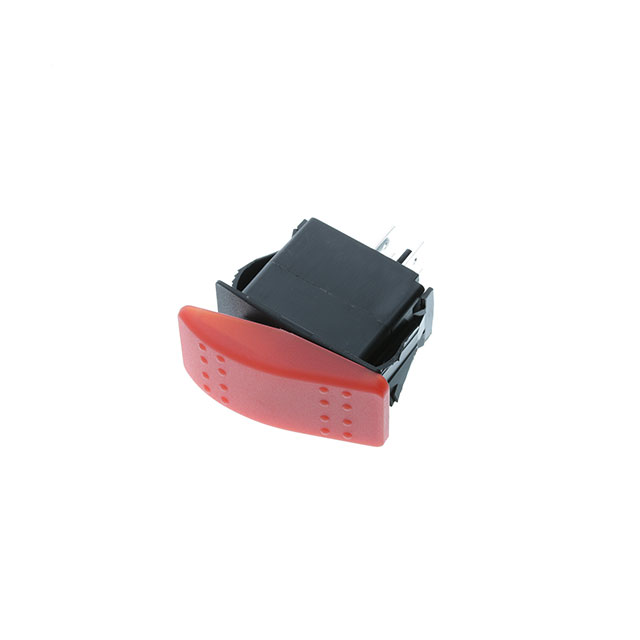

SRD1-2B-DC-1-RNN

SRD1-2B-DC-1-RNN is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH ROCKER DPST-NO 21A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for SRD1-2B-DC-1-RNN

• Description：SWITCH ROCKER DPST-NO 21A 125V
• Series：SRD1
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：20 (AC), 21 (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：14 V
• Actuator Type：Convex (Reverse V)
• Color - Actuator/Cap：Red
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP56 - Dust Protected, Water Resistant
• Features：-
• Panel Cutout Dimensions：Rectangular - 36.80mm x 21.20mm
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：-

Rocker Switches datasheet and documents for SRD1-2B-DC-1-RNN
