Product Detailed Parameters
- Description：CMC 12.5UH 6A 2LN 1KOHM SMD
- Series：SRF1206A
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：14mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
- Height (Max)：0.236" (6.00mm)
- Package / Case：4-SMD
- Inductance @ Frequency：12.5 µH @ 100 kHz
- Impedance @ Frequency：1 kOhms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

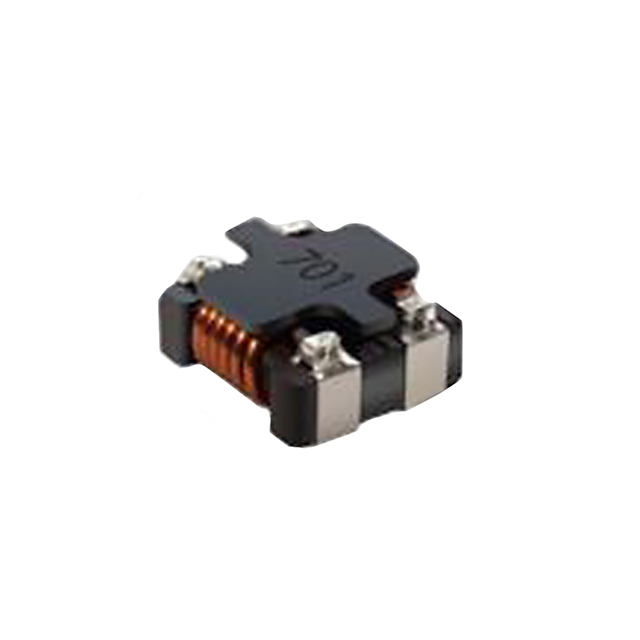

The Bourns SRF1206A-102Y is a surface-mount common mode choke designed for high-current applications. It features an inductance of 12.5 µH and supports a maximum DC current of 6 A. The component exhibits a maximum DC resistance of 14 mOhms and provides an impedance of 1 kOhm at 100 MHz. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 automotive qualification.
Feature Summary
- High current handling capability suitable for power line filtering
- Automotive grade reliability with AEC-Q200 certification
- Low DC resistance for efficient power transmission
Applications
- Automotive electronic control units
- Power supply input filtering
- Data line noise suppression
Procurement Notes
Verify the specific suffix and package dimensions against the official Bourns datasheet to ensure compatibility with your PCB footprint. Confirm that the 6 A current rating meets your circuit requirements under expected operating temperatures. Check for AEC-Q200 compliance if automotive application is required.
Selection Notes
Select this component when high current capacity is critical alongside common mode noise reduction. The low DCR minimizes power loss compared to higher resistance alternatives. Ensure the 12.5 µH inductance aligns with your target frequency attenuation needs.
Part Context
This part belongs to the SRF1206A series of shielded common mode chokes from Bourns. The series is engineered for compact designs requiring robust performance in automotive and industrial environments. It utilizes ferrite core technology for effective EMI suppression.
Replacement Considerations
Check for direct substitutes within the SRF1206A series or other Bourns CMC lines with matching 12.5 µH inductance and 6 A current ratings. Verify pinout and mechanical dimensions before substitution.
