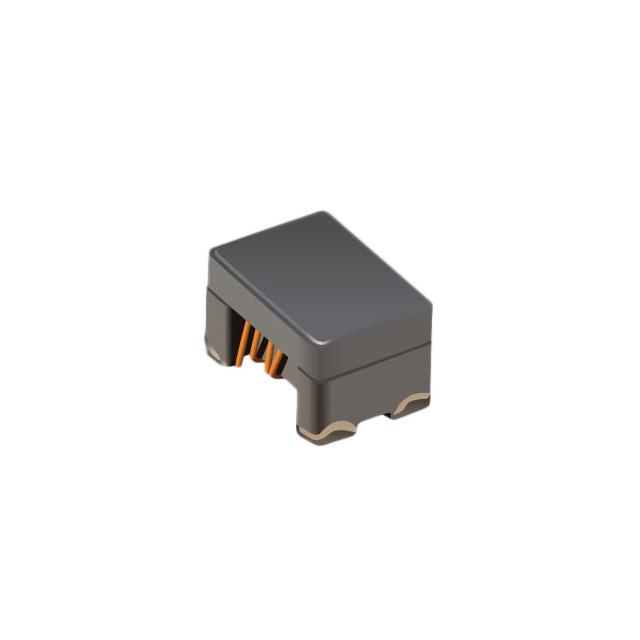

SRF3225TABG-101Y

$2.20

Description：CMC 0.35UH 90 OHM 4A SMD
Series：SRF3225TABG
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:077bc4233709 Category: Common Mode Chokes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 0.35UH 90 OHM 4A SMD
Series：SRF3225TABG
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：3Ohm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.130" L x 0.098" W (3.30mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：100 µH @ 100 kHz
Impedance @ Frequency：3 kOhms @ 10 MHz
Qualification：-
Grade：-

Download product information

SRF3225TABG-101Y

Overview

The Bourns SRF3225TABG-101Y is a shielded common mode choke designed for automotive applications. It features a ferrite core and operates within a temperature range of -40°C to +125°C. Key electrical parameters include an inductance of 100 µH at 100 kHz, a DC resistance maximum of 3 Ω, and a current rating of 100 mA. The impedance is 3 kΩ at 10 MHz. The component measures 3.3 mm x 2.5 mm x 2.5 mm and complies with AEC-Q200 standards.

Feature Summary

Complies with AEC-Q200 qualification standards for automotive reliability.
Meets Open Alliance 1000Base-T1 requirements for Ethernet noise suppression.
Shielded structure minimizes electromagnetic radiation.

Applications

1000Base-T1 Ethernet noise suppression
Advanced driver assistance systems (ADAS)
Automotive infotainment systems

Procurement Notes

Verify the specific suffix 'Y' against official Bourns documentation to confirm packaging details. Ensure the selected variant matches the required AEC-Q200 certification for automotive deployment. Cross-reference the impedance and inductance values with the latest datasheet to confirm compatibility with target circuit designs.

Selection Notes

Select this component for compact automotive Ethernet implementations requiring high impedance at 10 MHz. The 100 mA rating suits low-current signal lines. Verify thermal performance within the -40°C to +125°C operating range. Confirm footprint compatibility with the 3.3x2.5mm package dimensions during PCB layout.

Part Context

This part belongs to the SRF3225TABG series of automotive-grade common mode chokes. The series is engineered specifically for noise suppression in high-speed data transmission lines. It utilizes a shielded design to reduce EMI interference in space-constrained automotive environments.

Replacement Considerations

Check for direct substitutes within the SRF3225TABG series that match the 100 µH inductance and 100 mA current rating. Verify dimensional compatibility and AEC-Q200 compliance before substitution.
