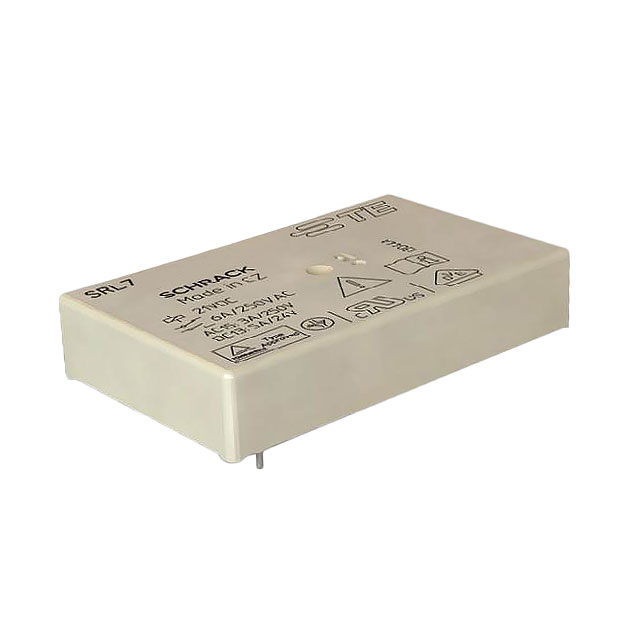

SRL7-523-D024

SRL7-523-D024 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE 7PST 6A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for SRL7-523-D024

• Description：RELAY GEN PURPOSE 7PST 6A 24V
• Series：SRL7, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：7PST-5NO/2NC (5 Form A, 2 Form B)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：2400VA
• Coil Current：29.3 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：18 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus, TUV, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：-
• Release Time：-
