SRN3010BTA-8R2M

Fixed Inductors Overview

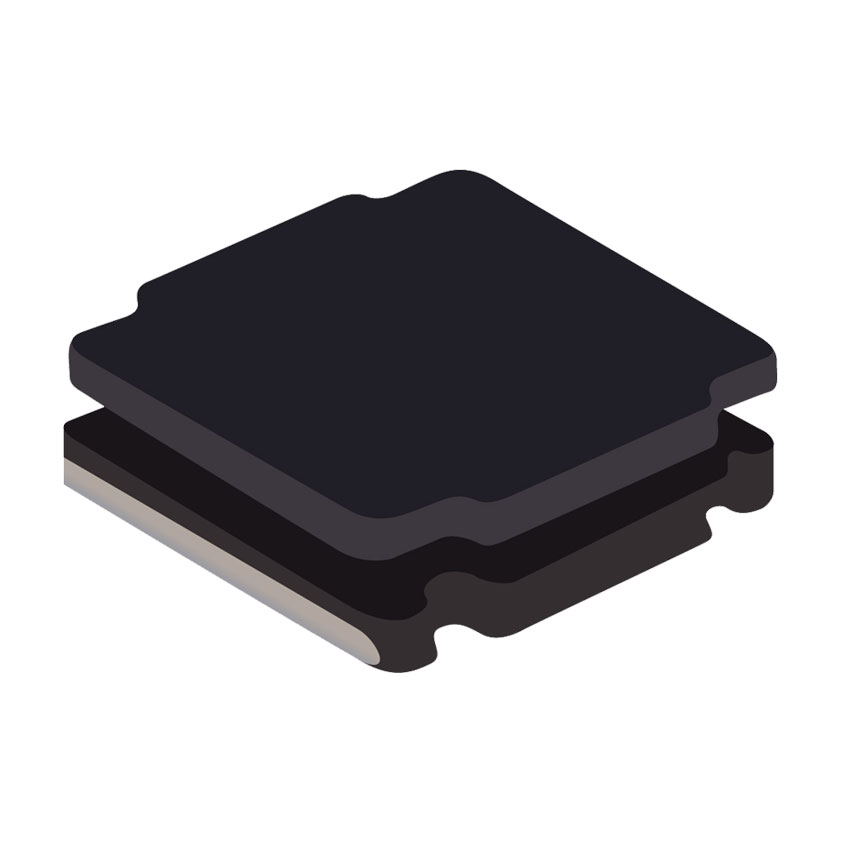

The SRN3010BTA-8R2M is a surface-mount power inductor from Bourns, designed for automotive applications. It features a ferrite core and semi-shielded construction within a 1212 (3x3x0.9 mm) package. The component has an inductance of 8.2 µH with a 20% tolerance. Key electrical parameters include a maximum DC resistance of 396 mOhms, a saturation current of 1 A, and a maximum DC current rating of 1.3 A. It operates between -55°C and +125°C, with a self-resonant frequency of 33 MHz and a minimum Q factor of 10 at 100 kHz.

Fixed Inductors Feature Summary

• AEC-Q200 compliant for automotive grade reliability
• Semi-shielded construction to reduce electromagnetic interference
• Low-profile design suitable for space-constrained PCB layouts

Fixed Inductors Applications

• Automotive DC-DC converters
• Automotive power supply stages
• Compact power electronics systems

Fixed Inductors Procurement Notes

Verify the specific suffix 'M' indicates tape-and-reel packaging configuration as per manufacturer standards. Confirm RoHS compliance status through official documentation prior to integration. Ensure ordering quantities align with standard reel sizes defined by Bourns for this series. Cross-reference the datasheet revision date to guarantee parameter accuracy against current production batches.

Fixed Inductors Selection Notes

Select this component when a low-profile, semi-shielded inductor is required for automotive-grade circuits. The 8.2 µH value suits specific filtering needs in DC-DC conversion. Consider the 1.3 A DC current rating and 1 A saturation limit for load requirements. The 1212 footprint allows for compact board designs while maintaining thermal performance within the specified temperature range.

Fixed Inductors Part Context

This part belongs to the SRN3010BTA series, which targets compact power supply stages requiring semi-shielded inductors. The series is characterized by its automotive qualification and enhanced product reliability. It complements other Bourns components like the SRP2512CL and SRP3212CL series in providing efficient power delivery solutions for modern electronic systems.

Fixed Inductors Replacement Considerations

Direct substitutes within the same series include SRN3010BTA-150M and SRN3010BTA-470M, differing primarily in inductance values. Verify pin compatibility and thermal characteristics when considering alternative manufacturers. Ensure any replacement maintains AEC-Q200 compliance if used in automotive applications.
