SRP1245CC-100M

Fixed Inductors Overview

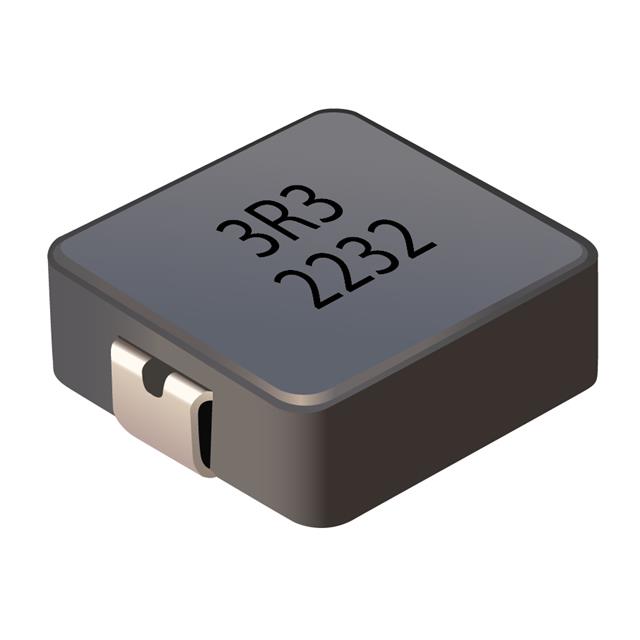

The Bourns SRP1245CC-100M is a shielded wirewound power inductor from the SRP1245CC series, featuring a carbonyl powder core. It offers an inductance of 10 µH with a tolerance of ±20%. The component supports a maximum DC current of 11 A and a saturation current of 17 A. Its maximum DC resistance is 25.5 mOhms, with a minimum Q factor of 20 at 100 kHz. Operating temperatures range from -40°C to +125°C. Dimensions are 13.50 mm x 12.50 mm x 5.00 mm.

Fixed Inductors Feature Summary

• Shielded wirewound construction using carbonyl powder core material for reduced electromagnetic interference.
• High saturation current capability of 17 A suitable for demanding power delivery applications.
• Surface mount design optimized for automated PCB assembly processes.

Fixed Inductors Applications

• Power supply modules
• Point-of-load converters
• DC-DC converter circuits

Fixed Inductors Procurement Notes

Verify the specific part number SRP1245CC-100M against official Bourns documentation to confirm the carbonyl powder core composition and 11 A rated current specifications. Ensure compatibility with required operating temperature ranges and surface mount footprint dimensions before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when high saturation current and low DC resistance are critical for power efficiency. The shielded design minimizes magnetic field interference in dense layouts. Verify that the 10 µH inductance value aligns with target circuit requirements and switching frequencies.

Fixed Inductors Part Context

This component belongs to the SRP1245CC series of shielded power inductors manufactured by Bourns. The series utilizes carbonyl powder cores to achieve high current handling capabilities within a compact surface mount package. It is distinct from ferrite-core variants like the standard SRP1245A.

Fixed Inductors Replacement Considerations

Direct substitutes include other Bourns SRP1245CC series parts with matching inductance and current ratings. Cross-reference electrical parameters such as DCR and saturation current when considering alternative manufacturers' components.
