SRP1265CC-1R0M

Fixed Inductors Overview

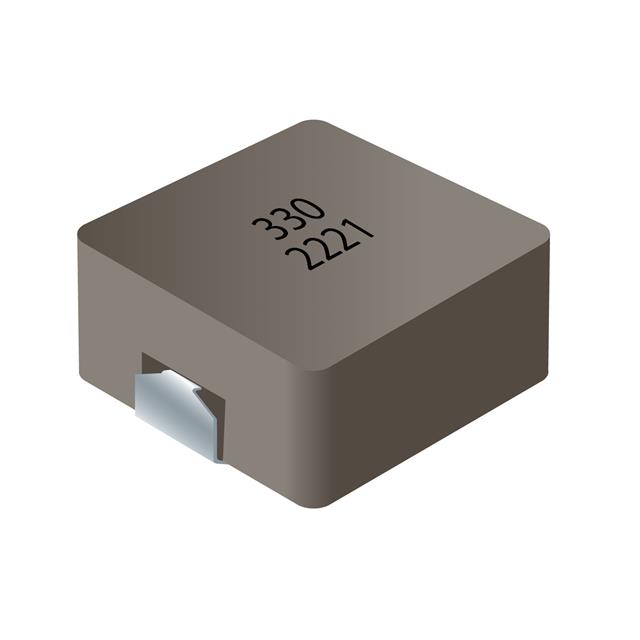

The SRP1265CC-1R0M is a shielded wirewound power inductor from the Bourns SRP1265CC series, designed for surface-mount applications. It features a carbonyl powder core and measures 13.5 x 12.5 x 6.2 mm. The component provides an inductance of 1 µH with a tolerance of ±20%. It supports a maximum RMS current of 35 A and has a maximum DC resistance of 2.3 mΩ. The device operates within a temperature range of -40°C to +150°C and complies with AEC-Q200 automotive standards.

Fixed Inductors Feature Summary

• Shielded construction utilizing a carbonyl powder core to minimize electromagnetic interference.
• High-current capability rated at 35 A RMS for demanding power delivery.
• Automotive-grade reliability certified under AEC-Q200 standards.
• Robust molded package design suitable for high-temperature environments up to 150°C.

Fixed Inductors Applications

• Automotive power distribution networks
• Point-of-load (POL) voltage regulation stages
• DC-DC converter output filtering

Fixed Inductors Procurement Notes

Verify the specific suffix 'CC' against official Bourns documentation to confirm the exact electrical characteristics and packaging configuration. Ensure that the AEC-Q200 compliance status aligns with your specific application requirements. Cross-reference the physical dimensions and terminal compatibility with your PCB layout constraints before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when high current handling and low DC resistance are critical for efficiency. The shielded design makes it suitable for noise-sensitive environments. Consider the 13.5 x 12.5 mm footprint and 6.2 mm height for spatial constraints. Evaluate the thermal performance at the expected operating current to ensure the temperature rise remains within acceptable limits for the system.

Fixed Inductors Part Context

This part belongs to the Bourns SRP1265C family of high-current shielded power inductors. The series includes variants such as SRP1265A and SRP1265WA, offering different electrical specifications while maintaining similar mechanical footprints. These components are engineered for compact power supply designs requiring robust magnetic shielding and high saturation currents.

Fixed Inductors Replacement Considerations

Consult official Bourns datasheets for direct cross-references. Potential substitutes within the same series include SRP1265A-1R0M, though verification of current ratings and tolerance differences is required. No other manufacturer part numbers are confirmed as direct replacements based on available public data.
