SRP2313CC-330M

Fixed Inductors Overview

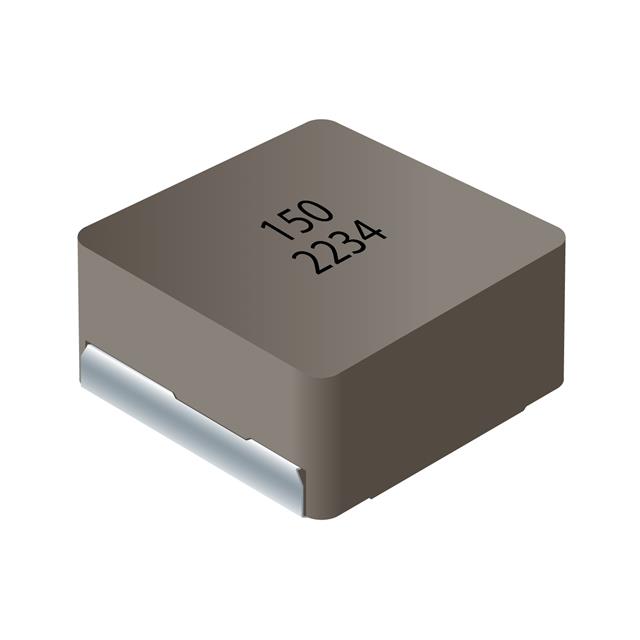

The Bourns SRP2313CC-330M is a shielded surface-mount power inductor from the SRP2313CC series. It features a carbonyl core and offers an inductance of 33 µH with a tolerance of ±20%. The component supports a maximum DC current of 19 A and has a saturation current of 12 A. Its maximum DC resistance is 15.4 mΩ, with a minimum Q factor of 30 at 100 kHz. Operating within a temperature range of -40°C to +125°C, it measures 23.5 mm x 22 mm x 12.6 mm.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference for stable circuit operation.
• Carbonyl powder core material provides high saturation current capabilities.
• Surface-mount design facilitates automated assembly and compact PCB integration.

Fixed Inductors Applications

• Power delivery networks for high-current applications
• DC-DC converter output filtering
• Industrial power supply circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix 'M' against the manufacturer's official datasheet to confirm packaging configuration and reel specifications. Ensure that the requested quantity aligns with standard factory packing quantities to avoid partial reel issues. Cross-reference the RoHS compliance status directly with the latest product documentation before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high current handling with a 33 µH value. The 19 A DC current rating and 12 A saturation point make it suitable for heavy-load applications. Verify that the physical footprint of 23.5 mm by 22 mm fits the available board space and that the thermal performance meets the operating environment requirements.

Fixed Inductors Part Context

This part belongs to the SRP2313CC series of shielded power inductors manufactured by Bourns. The series is characterized by its robust construction and suitability for demanding power electronics. The specific model utilizes a non-standard package dimension optimized for high-power density designs.

Fixed Inductors FAQ

What is the difference between the DC current rating and the saturation current?

The DC current rating (19 A) refers to the current causing a specified temperature rise, while the saturation current (12 A) is the point where inductance drops significantly due to core magnetic saturation.

Is the SRP2313CC-330M suitable for automotive applications?

The provided documentation does not specify AEC-Q200 automotive qualification for this specific part number; verify automotive compliance separately if required.
