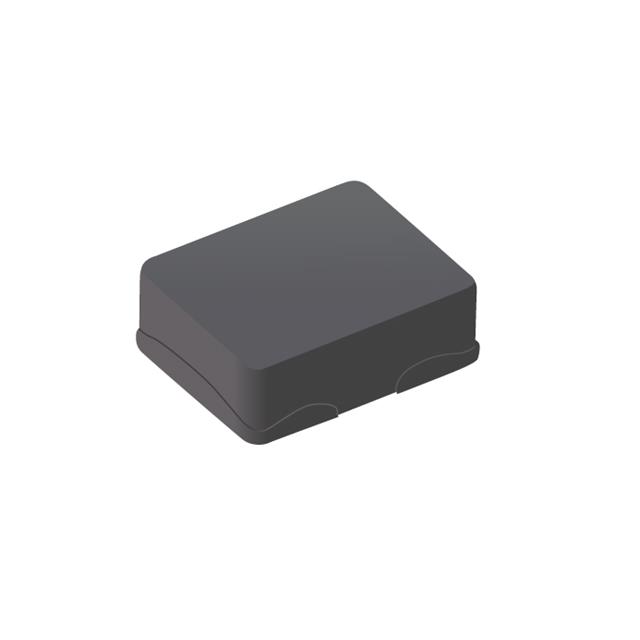

SRP2510TMA-R68M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is IND METAL POWDER 0.68UH 5.1A. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SRP2510TMA-R68M
- Description：IND METAL POWDER 0.68UH 5.1A
- Series：SRP2510TMA
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Metal
- Inductance：680 nH
- Tolerance：±20%
- Current Rating (Amps)：5.1 A
- Current - Saturation (Isat)：5.2A
- Shielding：Shielded
- DC Resistance (DCR)：30mOhm Max
- Q @ Freq：15 @ 1MHz
- Frequency - Self Resonant：70MHz
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 150°C
- Inductance Frequency - Test：1 MHz
- Mounting Type：Surface Mount
- Package / Case：1008 (2520 Metric)
- Supplier Device Package：-
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Features：Flat Wire
Fixed Inductors datasheet and documents for SRP2510TMA-R68M
Fixed Inductors Overview
The Bourns SRP2510TMA-R68M is a shielded surface-mount power inductor with a nominal inductance of 680 nH and a tolerance of ±20%. It utilizes a metal alloy powder core and flat wire construction to achieve high saturation current. The component supports a maximum DC current of 5.1 A and has a maximum DC resistance of 30 mΩ. It operates within a temperature range of -55°C to +150°C and holds AEC-Q200 automotive qualification.
Fixed Inductors Feature Summary
- Shielded design utilizing metal alloy powder core for enhanced magnetic containment
- Flat wire winding technology engineered for low DC resistance and high saturation performance
- AEC-Q200 qualified for reliable operation in demanding automotive environments
Fixed Inductors Applications
- Automotive power delivery networks
- On-board charger (OBC) circuits
- DC-DC converter output filtering
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against official Bourns documentation to confirm package type and reel specifications. Ensure that the selected variant matches the required thermal rating and current characteristics for the target application circuit. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when space-constrained designs require high current handling capabilities within a compact footprint. The metal alloy core provides superior saturation characteristics compared to ferrite alternatives, making it suitable for applications with significant DC bias. Verify that the operating temperature range aligns with the environmental conditions of the intended deployment scenario.
Fixed Inductors Part Context
This component belongs to the SRP2510TMA series of shielded power inductors manufactured by Bourns Inc. The series is designed for high-current applications requiring robust magnetic shielding and low impedance. It represents a specialized subset of the broader SRP product line, optimized specifically for automotive-grade reliability and performance standards.
Fixed Inductors Replacement Considerations
Direct substitutes include other Bourns SRP2510TMA variants with matching inductance values. Evaluate alternative manufacturers' shielded power inductors only if they meet identical electrical parameters and physical dimensions.
