SRP4030FA-4R7M

Fixed Inductors Overview

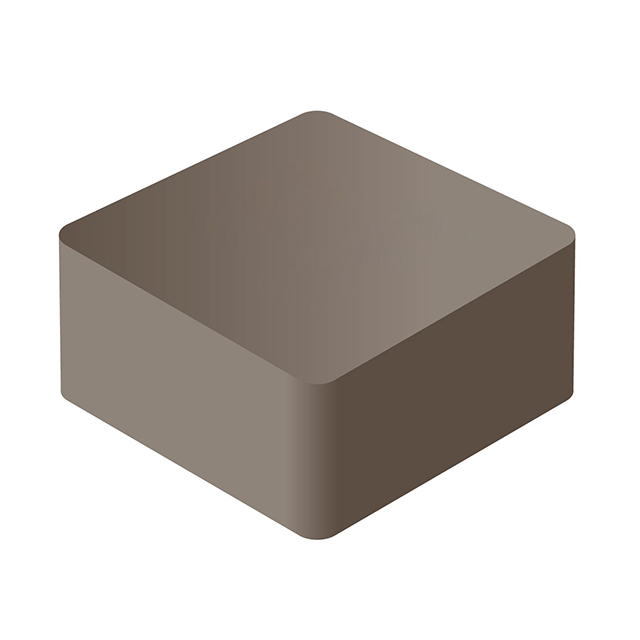

The Bourns SRP4030FA-4R7M is a shielded surface-mount power inductor from the SRP4030FA series, featuring a ferrite drum core and wirewound construction. It provides an inductance of 4.7 µH with a tolerance of ±20%. The component supports a maximum DC current of 5.1 A and a saturation current of 5.5 A, while maintaining a maximum DC resistance of 44.1 mΩ. It operates within a temperature range of -55°C to +155°C and holds AEC-Q200 automotive qualification.

Fixed Inductors Feature Summary

• Shielded construction minimizes magnetic radiation for low electromagnetic interference.
• High saturation current capability ensures stable performance under heavy load conditions.
• AEC-Q200 qualified for reliable operation in demanding automotive environments.

Fixed Inductors Applications

• Automotive power distribution systems
• Point-of-load (POL) converters
• DC/DC converter circuits

Fixed Inductors Procurement Notes

Verify the specific suffix against official Bourns documentation to confirm exact electrical ratings and packaging options. Ensure that the selected variant matches the required saturation and RMS current specifications for the target application. Confirm RoHS compliance status through the manufacturer's latest datasheet or environmental declaration before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when high current handling and compact SMD footprint are required for automotive-grade designs. Compare the 5.5 A saturation limit against peak load requirements to prevent inductance collapse. Consider the 44.1 mΩ DCR for efficiency calculations in low-voltage power stages. Verify thermal management capabilities given the wide operating temperature range.

Fixed Inductors Part Context

This part belongs to the SRP Series of automotive high-current shielded power inductors by Bourns. The series includes various sizes such as SRP30, SRP40, SRP50, and SRP60, designed for time-sensitive networking and general automotive power applications. These components utilize T-Core design technology to optimize performance in space-constrained electronic modules.

Fixed Inductors Replacement Considerations

Cross-reference with other SRP4030FA variants for different inductance values. Check Bourns technical bulletins for updated package dimensions or material changes. No direct substitute part numbers are publicly confirmed in the provided source data.
