SRP6030CA-1R8M

Fixed Inductors Overview

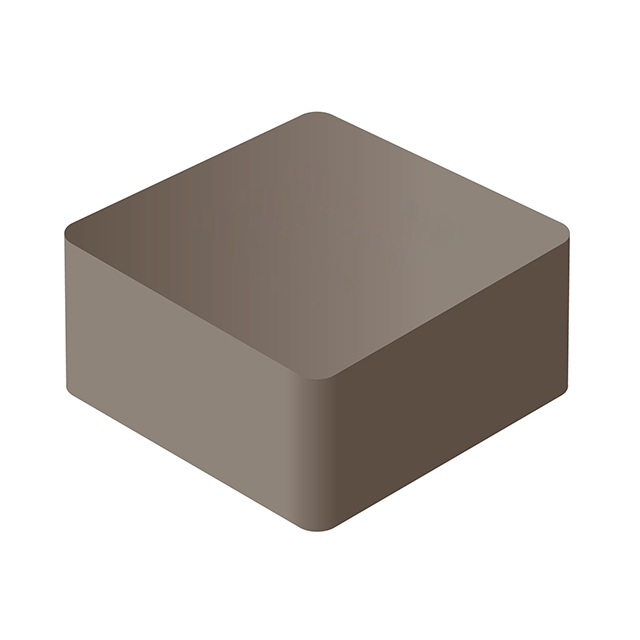

The Bourns SRP6030CA-1R8M is a shielded, drum core, wirewound power inductor from the SRP6030CA series. It features an inductance of 1.8 µH with a tolerance of ±20%. The component has a maximum DC resistance of 10.2 mΩ and supports a rated current of 14 A. Saturation current is specified at 17 A. Dimensions are 6.60 mm x 6.40 mm x 2.90 mm. It operates between -55°C and 155°C and holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference for stable circuit operation
• Drum core design provides high saturation current capability
• AEC-Q200 qualified for automotive grade reliability

Fixed Inductors Applications

• Automotive power distribution networks
• DC-DC converter output filtering
• Time-sensitive networking applications

Fixed Inductors Procurement Notes

Verify the specific suffix CA against the official Bourns datasheet to confirm the exact electrical parameters and core material. Ensure the ordering quantity matches the required packaging format, such as tape and reel or cut tape, as defined by the manufacturer's standard shipping configurations.

Fixed Inductors Selection Notes

Select this component when a compact surface-mount solution with high current handling is required. The 1.8 µH value suits intermediate frequency switching applications. Verify that the 14 A rated current and 17 A saturation current meet the peak load requirements of the target power stage without exceeding thermal limits.

Fixed Inductors Part Context

This part belongs to the SRP6030CA series of shielded power inductors designed for high-current applications. The series offers various inductance values ranging from 0.18 µH to 4.5 µH within the same footprint, allowing designers to scale performance while maintaining consistent board layout dimensions across different product variants.

Fixed Inductors Replacement Considerations

Direct substitutes include other SRP6030CA variants with identical footprints but different inductance values, such as SRP6030CA-1R0M or SRP6030CA-2R2M, provided the circuit tolerances allow for the change.
