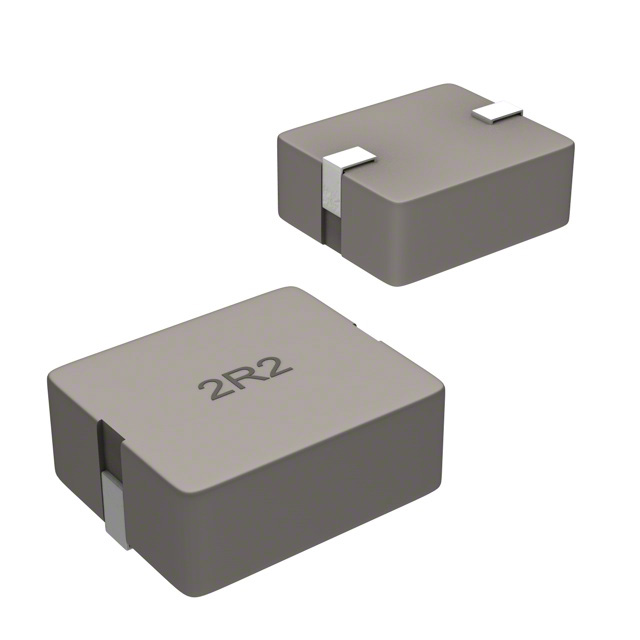

SRP7030-R82FM is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 820NH 12A 0.0066OHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SRP7030-R82FM
- Description：FIXED IND 820NH 12A 0.0066OHM SM
- Series：SRP7030F
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Iron
- Inductance：820 nH
- Tolerance：±20%
- Current Rating (Amps)：12:00 AM
- Current - Saturation (Isat)：14A
- Shielding：Shielded
- DC Resistance (DCR)：6.6mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.299" L x 0.256" W (7.60mm x 6.50mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：Flat Wire
Fixed Inductors datasheet and documents for SRP7030-R82FM
Fixed Inductors Overview
The Bourns SRP7030-R82FM is a shielded power inductor utilizing flat wire construction. It features an inductance of 820 nH with a tolerance of ±20%. The component has a maximum DC resistance of 6.6 mOhm and supports a rated current up to 12 A. Designed for surface mount applications, it offers a compact unit height of 3.0 mm.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- Flat wire design enhances current handling capabilities
- Compact profile suitable for space-constrained layouts
Fixed Inductors Applications
- Power delivery systems
- DC-DC converters
- Point-of-load regulation
Fixed Inductors Procurement Notes
Verify the obsolete status of this specific part number before procurement planning. Confirm availability of authorized substitutes or alternative series components from Bourns that meet equivalent electrical specifications and footprint requirements for ongoing production needs.
Fixed Inductors Selection Notes
Select this component for applications requiring high current density in a low-profile package. Ensure the selected inductor meets the saturation current requirements of the target circuit. Consider thermal management strategies given the high current rating and low DC resistance characteristics.
Fixed Inductors Part Context
This model belongs to the SRP7030 series of fixed inductors from Bourns Inc. The series is characterized by shielded construction and flat wire technology, designed for efficient power delivery in modern electronic systems requiring compact form factors.
Fixed Inductors Replacement Considerations
The SRP7030-R82FM is listed as obsolete. Similar available substitutes exist within the Bourns portfolio. Verify electrical compatibility and physical dimensions when selecting replacement parts.
