SRR0735HA-820M

Fixed Inductors Overview

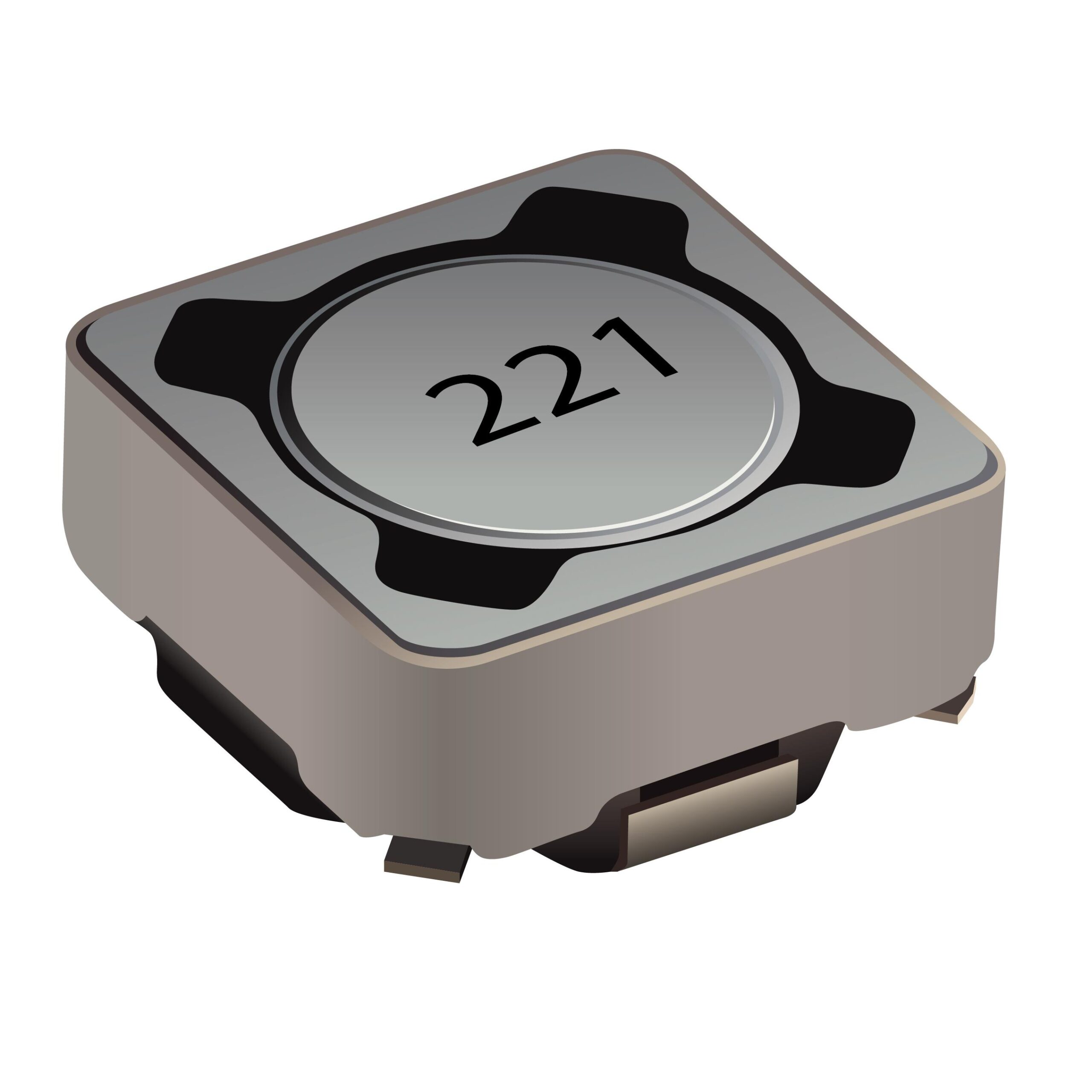

The SRR0735HA-820M is a shielded drum core wirewound inductor manufactured by Bourns Inc. It features an inductance of 82 µH with a tolerance of ±20%. The component supports a maximum DC current of 630 mA and has a maximum DC resistance of 480 mΩ. It operates within a temperature range of -55°C to +150°C and complies with AEC-Q200 automotive standards.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic radiation
• Wide operating temperature range for harsh environments
• AEC-Q200 compliant for automotive reliability

Fixed Inductors Applications

• Power supply filtering
• Noise suppression
• Automotive electronics

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the official Bourns datasheet to ensure correct tolerance and packaging specifications. Confirm that the AEC-Q200 qualification status aligns with your project's automotive grade requirements before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when low electromagnetic interference is critical due to its shielded design. Ensure the required inductance value of 82 µH fits the circuit design constraints. Verify that the 630 mA current rating meets the application's peak load demands without saturation.

Fixed Inductors Part Context

This part belongs to Bourns' surface mount power inductor series, designed for compact electronic assemblies. The SRR0735HA designation indicates a shielded drum core structure optimized for high-frequency applications where space efficiency and signal integrity are prioritized over through-hole alternatives.

Fixed Inductors Replacement Considerations

Consult the official Bourns cross-reference guide for verified substitute part numbers. Do not assume generic equivalents match the specific AEC-Q200 automotive qualification or shielding characteristics of this model.
