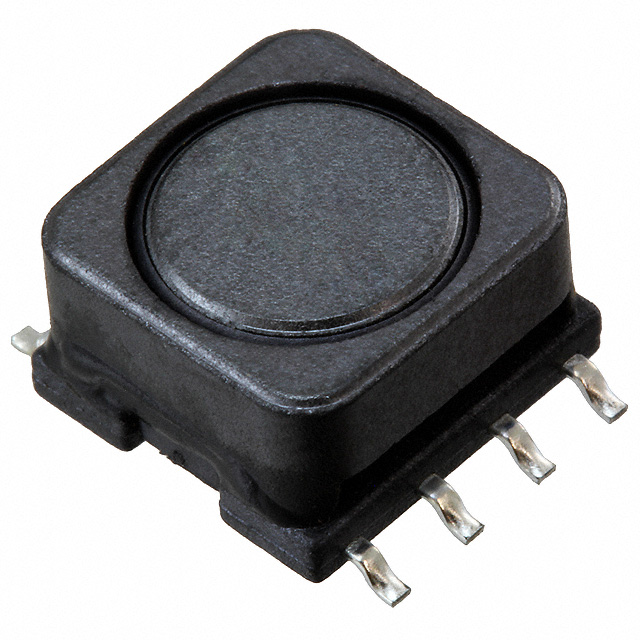

SRR0906-821YL is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 820UH 230MA 3.5OHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SRR0906-821YL
- Description：FIXED IND 820UH 230MA 3.5OHM SMD
- Series：SRR0906
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：820 µH
- Tolerance：±15%
- Current Rating (Amps)：230 mA
- Current - Saturation (Isat)：300mA
- Shielding：Shielded
- DC Resistance (DCR)：3.5Ohm Max
- Q @ Freq：85 @ 796kHz
- Frequency - Self Resonant：2.6MHz
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Surface Mount
- Package / Case：8-SMD, Gull Wing
- Supplier Device Package：-
- Size / Dimension：0.394" L x 0.374" W (10.00mm x 9.50mm)
- Height - Seated (Max)：0.248" (6.30mm)
- Features：-
Fixed Inductors datasheet and documents for SRR0906-821YL
Fixed Inductors Overview
The SRR0906-821YL is a shielded surface-mount power inductor from the Bourns SRR0906 series. It features a fixed inductance of 820 µH with a DC resistance (DCR) maximum of 3.5 Ohms. The component has a current rating of 230 mA and a saturation current of 300 mA. It utilizes a wirewound construction on a drum core and is packaged in an 8-SMD, gull wing configuration.
Fixed Inductors Feature Summary
- Shielded design to minimize electromagnetic interference
- Wirewound construction on a drum core for stability
- Gull wing terminal configuration for secure mounting
Fixed Inductors Applications
- Power supply filtering
- DC-DC converter circuits
- General electronic signal processing
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official Bourns documentation to confirm electrical characteristics and package dimensions. Ensure that the ordering suffix matches the required tape and reel specifications. Cross-reference datasheet parameters such as saturation current and DCR to validate suitability for the target application requirements before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component based on the required 820 µH inductance value and the specific current handling capabilities of 230 mA rated and 300 mA saturation. Consider the physical footprint constraints associated with the 8-SMD gull wing package. Evaluate the thermal performance implications of the 3.5 Ohm maximum DC resistance within the intended circuit topology.
Fixed Inductors Part Context
This component belongs to the SRR0906 series of shielded power inductors manufactured by Bourns Inc. The series is designed for surface-mount applications requiring compact magnetic components. The SRR0906-821YL specifically denotes the variant with 820 µH inductance, distinguishing it from other values within the same family.
Fixed Inductors Replacement Considerations
Consult official Bourns cross-reference data for verified substitute part numbers. Do not assume functional equivalence with generic inductors lacking identical shielding or saturation characteristics.
