SRR1280-681K

Fixed Inductors Overview

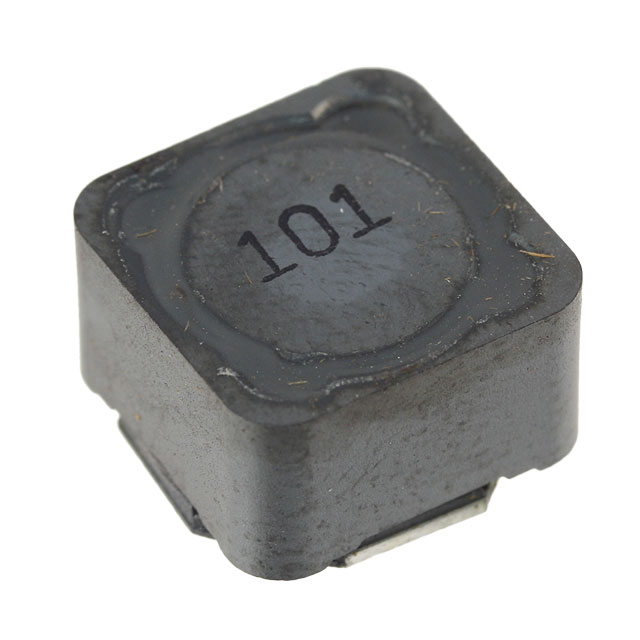

The Bourns SRR1280-681K is a shielded surface-mount power inductor from the SRR1280 series, featuring a wirewound construction with ferrite DR and RI core materials. It provides an inductance of 680 µH with a tolerance of ±10%. The component supports a maximum DC current of 750 mA and has a maximum DC resistance of 1.3 Ohms. It operates within a temperature range of -40°C to +125°C, exhibits a minimum Q factor of 26, and has a self-resonant frequency of 1.7 MHz.

Fixed Inductors Feature Summary

• Shielded drum core design minimizes electromagnetic interference for stable circuit operation.
• Wirewound technology with ferrite core ensures high reliability and consistent performance under load.
• Surface-mount package facilitates automated assembly and compact board layout.

Fixed Inductors Applications

• Power supply filtering
• DC-DC converter circuits
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the manufacturer part number SRR1280-681K against official Bourns documentation to confirm specifications. Ensure compatibility with peak current requirements and thermal management constraints. Check for RoHS compliance status and automotive qualification if applicable to the target application environment.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with 680 µH nominal value is required. Consider the 750 mA saturation current limit and 1.3 Ohm DC resistance for efficiency calculations. Evaluate the 12.5 mm x 12.5 mm footprint against available PCB space and ensure operating temperatures remain within the specified -40°C to +125°C range.

Fixed Inductors Part Context

This component belongs to the Bourns SRR1280 series of shielded SMD power inductors. The series utilizes wirewound construction on ferrite cores to provide robust magnetic shielding. These inductors are designed for general power applications requiring reliable inductance values in surface-mount formats.

Fixed Inductors Replacement Considerations

SRR1280-681K is functionally equivalent to other 680 µH shielded SMD inductors with similar current ratings. Verify physical dimensions and pinout compatibility before substitution. Cross-reference datasheets for exact DC resistance and saturation current limits to ensure circuit performance remains unaffected.
