SRR5018-2R5Y

Fixed Inductors Overview

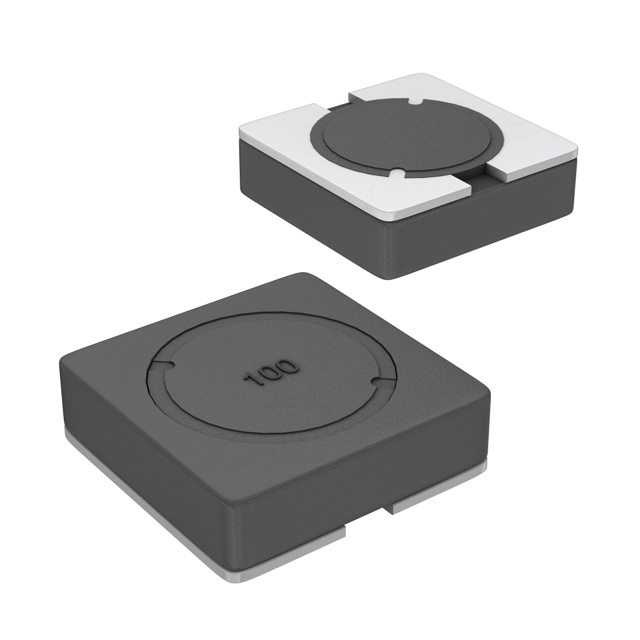

The SRR5018-2R5Y is a fixed inductor from the Bourns SRR5018 series, featuring a shielded drum core and wirewound construction. It has an inductance of 2.5 µH with a maximum DC resistance of 40 mΩ. The component supports a saturation current of 2.7 A and a maximum current rating of 2.4 A. Designed for surface-mount applications, it utilizes a nonstandard package suitable for automated assembly processes.

Fixed Inductors Feature Summary

• Shielded drum core design minimizes electromagnetic interference
• Wirewound construction ensures stable inductance performance
• Surface-mount format facilitates automated PCB assembly

Fixed Inductors Applications

• Power supply filtering circuits
• DC-DC converter input/output stages
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific suffix 'Y' against the manufacturer's official datasheet to confirm tape-and-reel packaging specifications. Ensure the part number matches the exact electrical ratings required for the target application circuit. Cross-reference the manufacturing date code to ensure compliance with current RoHS directives and material composition standards.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor with moderate current handling is required. The 2.5 µH value suits applications needing specific impedance characteristics without excessive size. Consider the 2.4 A continuous current rating to ensure thermal stability under load conditions within the operating temperature range.

Fixed Inductors Part Context

This component belongs to the SRR5018 series of shielded power inductors manufactured by Bourns Inc. The series is characterized by its robust wirewound technology and low profile form factor. These inductors are engineered for high reliability in demanding electronic environments, providing consistent performance across various industrial and consumer applications.

Fixed Inductors Replacement Considerations

Consult the official Bourns catalog for direct cross-references. Verify that any substitute part maintains identical inductance, current ratings, and physical dimensions to ensure compatibility with existing board layouts and thermal management systems.
