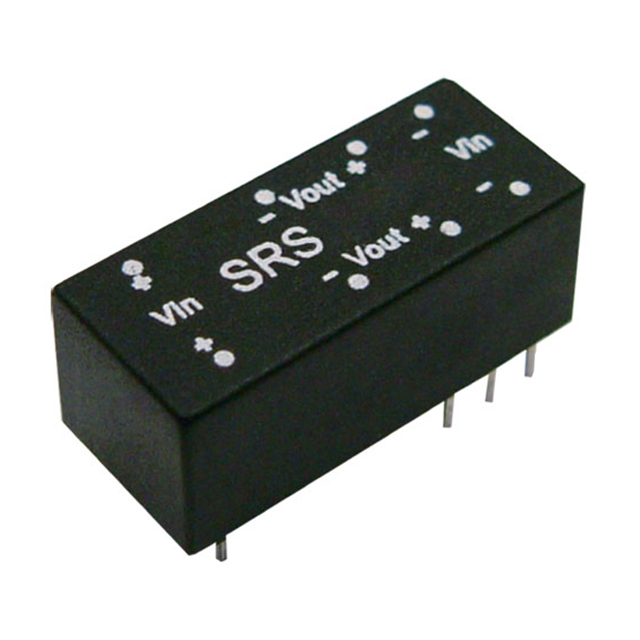

SRS-0512

SRS-0512 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 12V 504MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SRS-0512

• Description：DC DC CONVERTER 12V 504MW
• Series：SRS (0.5W)
• Mfr：MEAN WELL USA Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：42mA
• Power (Watts)：504 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-25°C ~ 71°C (With Derating)
• Efficiency：60%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 8 Leads
• Size / Dimension：0.89" L x 0.39" W x 0.33" H (22.6mm x 9.9mm x 8.4mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SRS-0512
