Single Diodes Overview

The SRT5100UF is a Schottky barrier rectifier manufactured by Panjit International Inc., rated for 100V and 5A. It features an extreme low forward voltage drop, with typical values of 0.42V at 1A, 0.52V at 3A, and 0.61V at 5A (TA=25°C). The device has a maximum average rectified output current of 5A and a peak forward surge current of 80A. Operating junction temperature ranges from -55°C to +150°C. Typical thermal resistance is 15°C/W (junction-to-lead) and 135°C/W (junction-to-ambient). Reverse leakage current is typically 5μA at 70V and 5mA at 125°C.

Single Diodes Feature Summary

• Extreme low forward voltage drop for high efficiency operation
• Ultra thin profile package suitable for space-constrained applications
• Lead-free construction compliant with EU RoHS directive
• Green molding compound that is halogen-free

Single Diodes Applications

• Automated placement assembly processes
• Power supply units requiring low power loss
• Space-constrained electronic designs

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm packaging type and compliance status. The datasheet indicates standard packing as Tape and Reel on a 13-inch plastic reel with 5,000 units per reel. Confirm the exact part number variant matches your required handling specifications before procurement.

Single Diodes Selection Notes

Select this component for applications prioritizing low conduction losses and high efficiency in rectification circuits. Ensure the operating environment stays within the specified -55°C to +150°C junction temperature range. Consider the 15°C/W thermal resistance when designing heat dissipation strategies for lead-mounted configurations.

Single Diodes Part Context

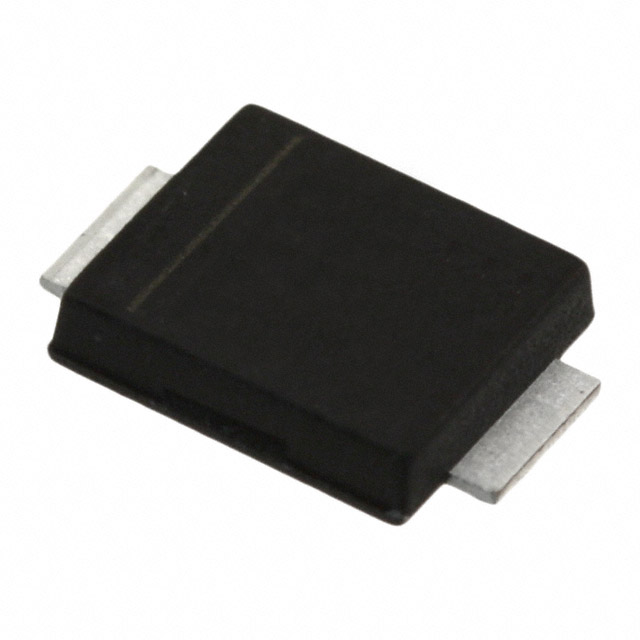

This component belongs to the SRT series of Schottky barrier rectifiers produced by Panjit International Inc. It utilizes silicon technology optimized for low forward voltage characteristics. The device is designed for surface mount applications using the SMBF package style, providing a compact solution for modern electronics manufacturing.

Single Diodes Replacement Considerations

Consult official substitution lists or equivalent parameter matching for verified alternatives. Cross-reference maximum ratings and package dimensions to ensure mechanical compatibility.
