SRU2016-4R7Y is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 4.7UH 1.15A 215MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SRU2016-4R7Y
- Description：FIXED IND 4.7UH 1.15A 215MOHM SM
- Series：SRU2016
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：4.7 µH
- Tolerance：±30%
- Current Rating (Amps)：1.15 A
- Current - Saturation (Isat)：740mA
- Shielding：Shielded
- DC Resistance (DCR)：215mOhm Max
- Q @ Freq：8 @ 7.96MHz
- Frequency - Self Resonant：80MHz
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.110" L x 0.110" W (2.80mm x 2.80mm)
- Height - Seated (Max)：0.071" (1.80mm)
- Features：-
Fixed Inductors datasheet and documents for SRU2016-4R7Y
Fixed Inductors Overview

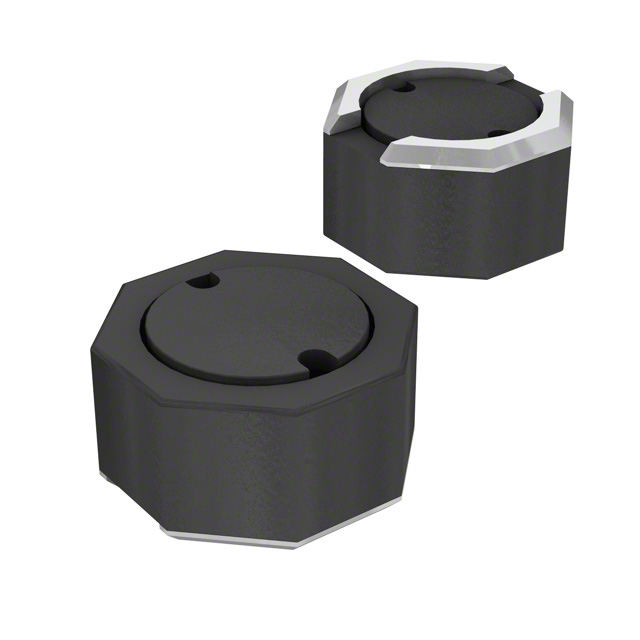

The Bourns SRU2016-4R7Y is a shielded surface-mount power inductor from the SRU series, featuring an octagonal drum core and wirewound construction. It provides an inductance of 4.7 µH with a tolerance of ±30%. The component supports a maximum DC current of 1.15 A and has a maximum DC resistance of 215 mΩ. Saturation current is rated at 1.15 A. Operating temperature range spans from -40°C to +125°C. Dimensions are 2.0 mm x 1.6 mm x 1.0 mm.
Fixed Inductors Feature Summary
- Shielded magnetic structure minimizes electromagnetic interference
- Octagonal drum core design for compact footprint
- Wirewound construction for stable performance
Fixed Inductors Applications
- Power supply circuits
- DC-DC converters
- Portable electronics
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging and tolerance specifications. Confirm that the component meets RoHS requirements if applicable to your assembly process. Cross-reference the part number with official Bourns documentation to validate availability and manufacturing status before procurement.
Fixed Inductors Selection Notes
Select this component when space constraints require a small surface-mount form factor. Ensure the circuit design accounts for the 1.15 A saturation current limit. Verify thermal management capabilities given the 215 mΩ DC resistance. Compare against other SRU series variants if different current ratings or dimensions are needed.
Fixed Inductors Part Context
This part belongs to the Bourns SRU series of shielded power inductors. The series offers various sizes ranging from 2mm to 10mm, with body heights from 0.9mm to 6.3mm. These components are designed for applications requiring high reliability and low profile in modern electronic devices.
Fixed Inductors Replacement Considerations
Check Bourns SRU2016-2R2Y for lower inductance needs. Consider SRU8028-4R7Y for higher current capacity. Review SRU1063-4R7Y for larger footprint options.
