SRU6025-2R2Y

$0.66

Description：FIXED IND 2.2UH 3.4A 24 MOHM SMD
Series：SRU6025
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4d83491fe2ff Category: Fixed Inductors Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SRU6025-2R2Y is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 2.2UH 3.4A 24 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SRU6025-2R2Y

Description：FIXED IND 2.2UH 3.4A 24 MOHM SMD
Series：SRU6025
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：2.2 µH
Tolerance：±30%
Current Rating (Amps)：3.4 A
Current - Saturation (Isat)：2.35A
Shielding：Shielded
DC Resistance (DCR)：24mOhm Max
Q @ Freq：8 @ 7.96MHz
Frequency - Self Resonant：65MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.256" L x 0.244" W (6.50mm x 6.20mm)
Height - Seated (Max)：0.110" (2.80mm)
Features：-

Fixed Inductors datasheet and documents for SRU6025-2R2Y

SRU6025-2R2Y

Fixed Inductors Overview

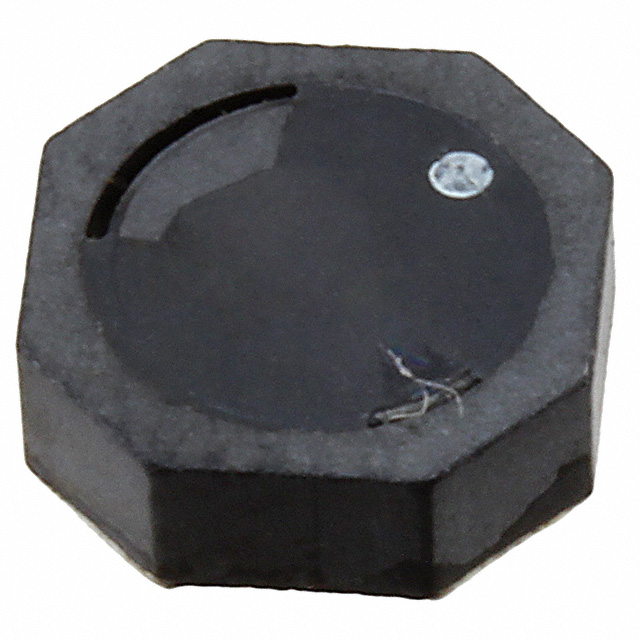

The Bourns SRU6025-2R2Y is a shielded surface-mount power inductor from the SRU6025 series, featuring a ferrite drum core and wirewound construction. It provides an inductance of 2.2 µH with a tolerance of ±30%. The component supports a maximum DC current of 3.4 A and a saturation current of 2.35 A, with a maximum DC resistance of 24 mΩ. Operating within a temperature range of -40°C to +125°C, it exhibits a self-resonant frequency of 65 MHz and a minimum Q factor of 8 at 7.96 MHz. The package dimensions are 6.5 mm x 6.2 mm x 2.5 mm.

Fixed Inductors Feature Summary

Shielded magnetic structure minimizes external electromagnetic interference
Ferrite drum core design optimizes high-frequency performance
Surface mount configuration facilitates automated assembly

Fixed Inductors Applications

Power delivery networks for digital load applications
DC-DC converter output filtering
Point-of-load regulation circuits

Fixed Inductors Procurement Notes

Verify the specific suffix 'Y' against the manufacturer's official documentation to confirm packaging type and compliance status. Ensure that the selected distributor source aligns with the original equipment manufacturer's authorized channel requirements. Cross-reference the part number with the latest datasheet revision to validate electrical parameters before integration into the bill of materials.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for high-current applications. The 2.35 A saturation current rating must be evaluated against peak load conditions. The low DC resistance contributes to reduced conduction losses. Verify thermal management capabilities within the final enclosure design to maintain operation within the specified temperature limits.

Fixed Inductors Part Context

This component belongs to the SRU6025 series of shielded power inductors manufactured by Bourns Inc. The series utilizes a proprietary ferrite material and drum core geometry to achieve high efficiency in small footprints. These inductors are designed for general-purpose power electronics applications requiring reliable magnetic shielding and stable inductance characteristics under varying current loads.
