SS11H-R10093-CH

Overview

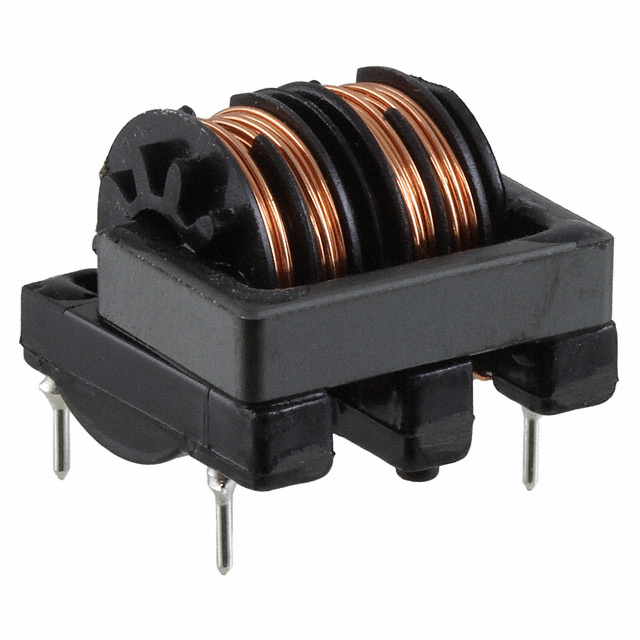

The KEMET SS11H-R10093-CH is a through-hole common mode choke designed for commercial grade applications. It features a bobbin style construction with a nominal inductance of 9.3 mH (9,300 µH). The component supports a current rating of 1 A and is engineered for use in 250 VAC environments. It provides effective EMI filtering capabilities while maintaining compliance with RoHS standards.

Feature Summary

• Provides precise EMI filtering for AC line applications
• Through-hole bobbin construction for robust mounting
• Commercial grade reliability for general electronic equipment

Applications

• 250 VAC power line filtering
• Common mode noise suppression in AC circuits
• EMI reduction in commercial electronic devices

Procurement Notes

Verify the specific suffix and inductance value against the official KEMET datasheet to ensure compatibility with your circuit design. Confirm that the through-hole package dimensions match your PCB layout requirements. Ensure the 1 A current rating meets the operational demands of your application without exceeding thermal limits.

Selection Notes

Select this component when a high-inductance common mode choke is required for 250 VAC systems. The 9.3 mH value offers significant attenuation for common mode noise. Consider the through-hole mounting style if surface mount options are unsuitable for mechanical stability or manufacturing processes.

Part Context

This part belongs to the KEMET SS11V/H-CH series of common mode chokes. These components are specifically designed for power line filtering applications where high inductance and current handling are necessary. The series utilizes a bobbin winding technique to achieve consistent performance across commercial grade products.

FAQ

What is the nominal inductance of the SS11H-R10093-CH?

The nominal inductance is 9.3 mH (9,300 µH).

Is this component suitable for surface mount assembly?

No, the SS11H-R10093-CH is a through-hole device with a bobbin style construction.
