SS11H-R17036-CH

Overview

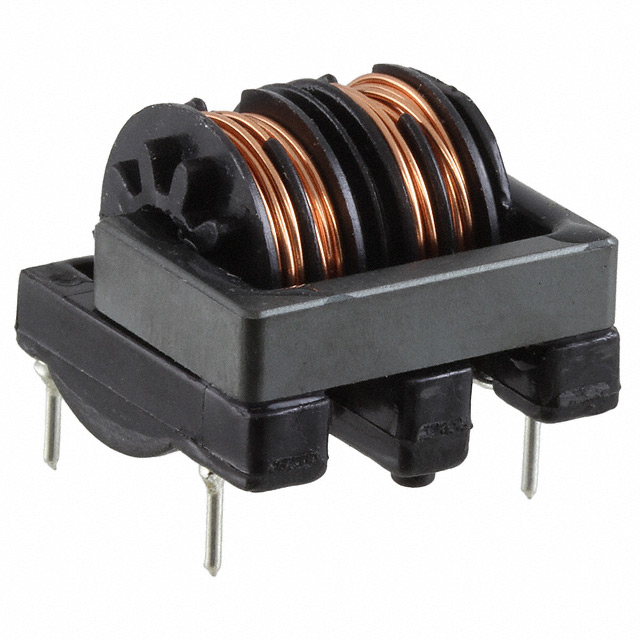

The KEMET SS11H-R17036-CH is a through-hole common mode choke belonging to the SS11V/H-CH series. It features a radial leaded bobbin construction with an inductance of 3.6 mH and a maximum DC current rating of 1.7 A. The component has a maximum DC resistance of 190 mohms and operates within a temperature range of -25 °C to +120 °C. Its physical dimensions are 21 mm in length and 16 mm in height.

Feature Summary

• Radial through-hole mounting style for standard PCB integration
• Common mode filtering capability for AC line applications
• High thermal stability up to 120 °C operating temperature

Applications

• AC line filter circuits
• Electromagnetic interference suppression
• Power supply input stages

Procurement Notes

Verify component status as Not Recommended for New Designs (NRND). Confirm availability through authorized distributors or surplus channels. Ensure design modifications are considered if long-term supply continuity is required. Check RoHS compliance details against specific manufacturing dates.

Selection Notes

Select this component for applications requiring 3.6 mH common mode inductance with 1.7 A current handling. Verify that the 190 mohms DC resistance meets circuit loss requirements. Ensure the radial package fits the available PCB footprint and that the 120 °C temperature rating suits the operational environment.

Part Context

This part belongs to the KEMET SS11V/H-CH series of common mode chokes. These components are designed for power line filtering using a through-hole bobbin architecture. The series provides standardized inductance values for EMI reduction in AC mains applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
