SS11V-07120-CH

Overview

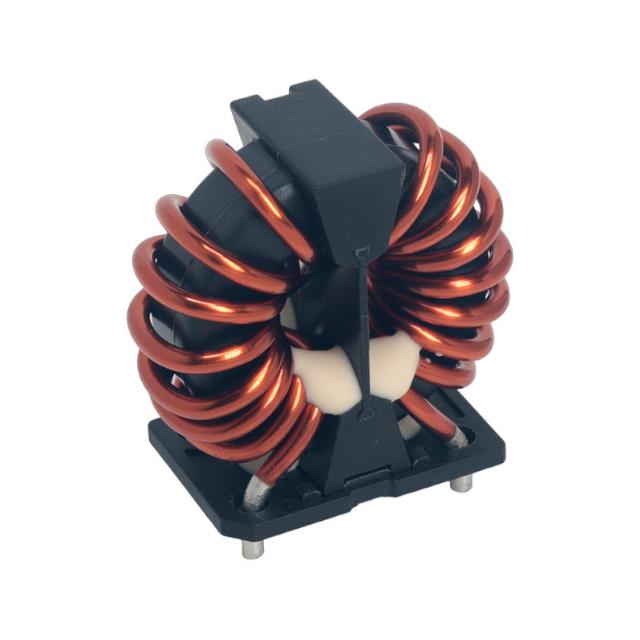

The KEMET SS11V-07120-CH is a through-hole common mode choke filter designed for power line applications. It features a single-channel configuration with an inductance of 12 mH and a maximum DC current rating of 0.7 A. The component supports a maximum AC voltage of 250 VAC and operates within a temperature range of -25°C to +120°C. It has a maximum DC resistance of 900 mOhms and utilizes a vertical mount style.

Feature Summary

• Provides effective common mode noise suppression for power lines
• Constructed with a through-hole bobbin design for reliable mounting
• Encapsulated in a self-extinguishing plastic case for safety

Applications

• Power factor correction circuits
• Pulse applications requiring noise filtering
• General power line EMI suppression

Procurement Notes

Verify the specific suffix CH against the manufacturer's latest datasheet to confirm compliance status and material composition. Ensure the ordering part number matches the required inductance and current ratings for the target circuit design before finalizing procurement.

Selection Notes

Select this component when a single-channel common mode choke with 12 mH inductance is required for 250 VAC systems. Consider the 0.7 A current limit and 900 mOhms DC resistance during thermal and electrical design phases to ensure compatibility with the load requirements.

Part Context

This component belongs to the SS11V/H-CH series of common mode chokes manufactured by KEMET. These filters are typically constructed using metallized polypropylene film technology, offering robust performance in high-frequency noise suppression environments commonly found in industrial and consumer power electronics.

Replacement Considerations

The part SS11V-07120-CH is listed as Not Recommended for New Designs by distributors such as TTI Europe. Verify availability of alternative components from the same series or equivalent specifications if long-term supply stability is required.
