SS11V-11050-CH

$1.45

Description：CMC 5MH 1.1A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray

SKU:40df768a7f71 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5MH 1.1A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.1A
DC Resistance (DCR) (Max)：400mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max)：0.886" (22.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5 mH @ 1 kHz
Qualification：-
Grade：-

Download product information

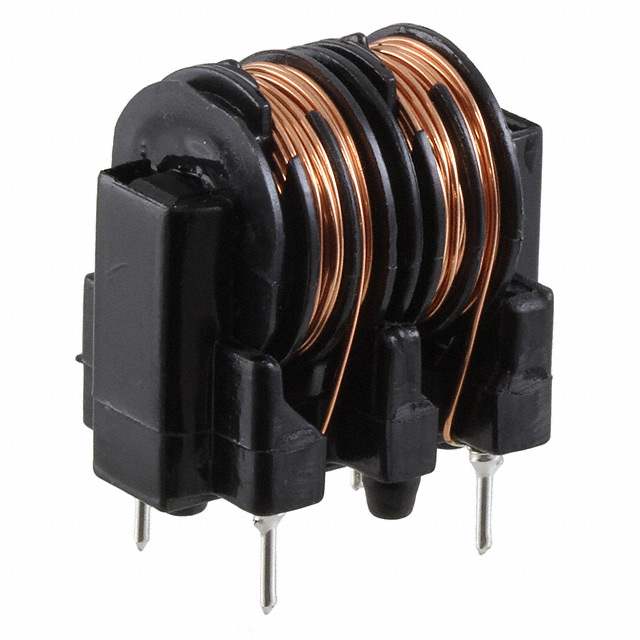

SS11V-11050-CH

Overview

The KEMET SS11V-11050-CH is a dual common mode choke designed for through-hole mounting. It features an inductance of 5000 µH at 1 kHz and a DC resistance (DCR) of 0.4 Ω. The component supports a current rating of 1.1 A and operates with a voltage rating of 250 V AC.

Feature Summary

Dual winding configuration for effective common mode noise suppression
Suitable for AC line filtering applications in consumer electronics

Applications

Common mode chokes
AC line filters
Consumer electronics noise suppression

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with required current and voltage specifications for the target application before procurement.

Selection Notes

Select this component for applications requiring dual-channel common mode filtering with moderate current handling capabilities. Consider the through-hole package type and physical size constraints during circuit board layout design.

Part Context

This component belongs to the KEMET SS series, which includes coils and chokes intended for AC line filtering. The series is characterized by its suitability for consumer electronics and general-purpose noise suppression tasks.

Replacement Considerations

Consult official KEMET substitution guides or datasheets for verified equivalent parts. Do not assume cross-compatibility with other manufacturers' components without verifying electrical and mechanical parameters.
