Product Detailed Parameters
- Description：CMC 35MH 500MA 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：1.8Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.866" L x 0.571" W (22.00mm x 14.50mm)
- Height (Max)：0.886" (22.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：35 mH @ 1 kHz
- Qualification：-
- Grade：-
Download product information
Overview

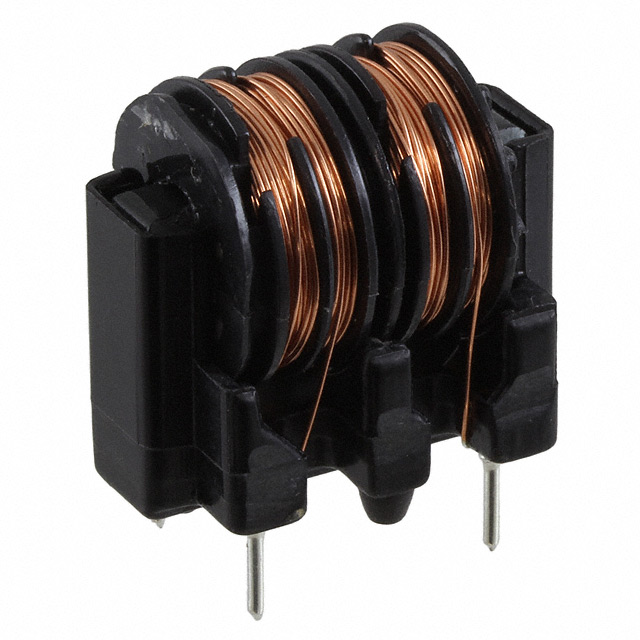

The KEMET SS11V-R05350-CH is a through-hole common mode choke from the SS11V/H-CH series. It features a nickel-zinc ferrite core and offers an inductance of 35 mH with a maximum DC resistance of 1.8 Ω. The component supports a rated current of 0.5 A and withstands voltages up to 250 VAC. Designed for power line filtering, it operates within a temperature range of -40 °C to +125 °C and utilizes vertical pin termination for PCB mounting.
Feature Summary
- Provides effective common mode noise suppression for two-line AC power configurations
- Constructed with a bobbin-wound design using nickel-zinc ferrite material
- Engineered for robust performance in consumer electronics power supply applications
Applications
- AC power line filtering in consumer electronics
- EMI suppression for two-line power inputs
- Power supply input stages requiring common mode chokes
Procurement Notes
Verify component status as this part may be marked Not Recommended for New Designs. Confirm exact physical dimensions and lead specifications against the official datasheet before integration. Ensure compatibility with existing PCB footprints and thermal management requirements during the procurement phase.
Selection Notes
Select this component when a 35 mH inductance value is required for common mode noise reduction in low-current AC applications. Consider the 0.5 A current rating and 1.8 Ω DC resistance limits. Verify that the through-hole vertical package fits the assembly constraints and that the operating temperature range meets environmental demands.
Part Context
This component belongs to the KEMET SS11V/H-CH series of common mode chokes. These devices are specifically designed for AC line filtering tasks. The series provides standardized solutions for EMI suppression in general-purpose electronic equipment, offering reliable noise attenuation without requiring complex circuitry.
Replacement Considerations
Check for active alternatives if new designs are required due to potential obsolescence. Verify equivalent inductance, current rating, and physical footprint when sourcing substitutes.
