SS11V-R08125-CH

Overview

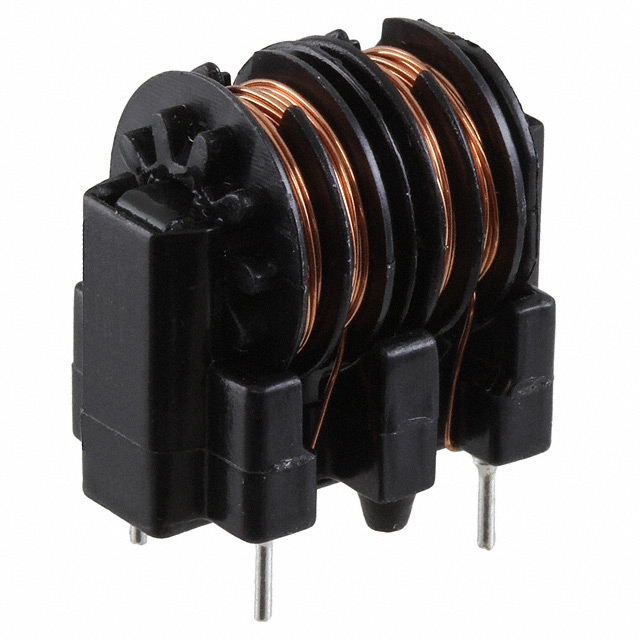

The SS11V-R08125-CH is a common mode choke from the KEMET SS series, designed for power line filtering applications. It features an inductance of 12.5 mH at 1 kHz and supports a maximum DC current of 800 mA with a DC resistance of 740 mOhms. The component operates within a temperature range of -25°C to 120°C and utilizes a vertical through-hole package with four pins.

Feature Summary

• Provides common mode noise suppression for power lines
• Utilizes a robust vertical through-hole mounting configuration
• Engineered for high inductance stability under rated current conditions

Applications

• Power line EMI filtering
• Industrial equipment noise suppression
• Consumer electronics power input stages

Procurement Notes

Verify the specific suffix CH against official KEMET documentation to confirm material composition and compliance status. Ensure the selected variant matches the required thermal and electrical ratings for the target application environment before finalizing procurement decisions.

Selection Notes

Select this component when a high inductance value of 12.5 mH is required for common mode noise reduction in power circuits. Consider the 800 mA current rating and 740 mOhm DCR to ensure compatibility with the system's power budget and thermal management capabilities.

Part Context

This part belongs to the KEMET SS series of common mode chokes, which are widely used for electromagnetic interference suppression. The SS11V-R08125-CH specifically addresses needs for higher inductance values in through-hole designs, distinguishing it from surface-mount alternatives or lower-inductance variants within the broader product family.

Replacement Considerations

Official substitute part numbers are not confirmed in the provided source data. Verify cross-reference availability directly with KEMET technical support or authorized distributors to ensure equivalent performance characteristics.
