SS11V-R10093-CH

Overview

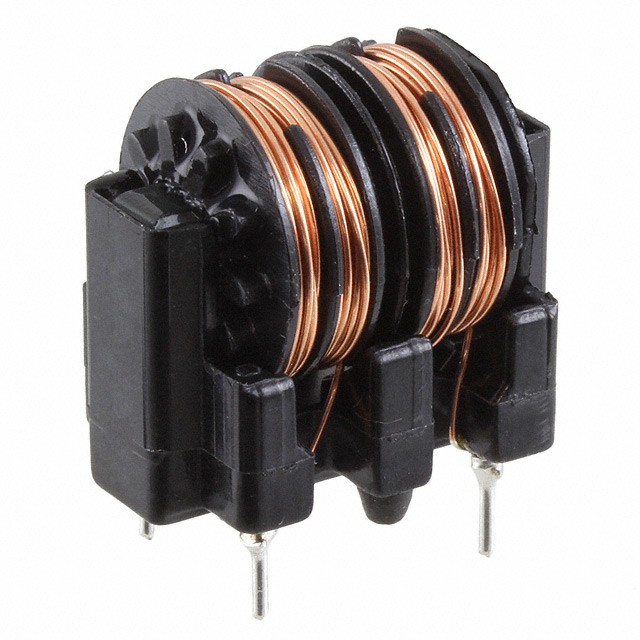

The SS11V-R10093-CH is a through-hole common mode filter choke manufactured by KEMET. It belongs to the SS11V-CH series and is designed for AC line filtering applications. The component utilizes a vertical terminal base configuration suitable for PCB mounting. Official documentation identifies this specific part number as not recommended for new designs, indicating it may be a legacy or discontinued item within the manufacturer's portfolio.

Feature Summary

• Through-hole construction with vertical terminals
• Common mode noise suppression capability
• AC filter application design

Applications

• AC power line filtering
• Electromagnetic interference suppression in AC circuits

Procurement Notes

Verify current availability status directly with authorized distributors or KEMET sales representatives. Confirm that the 'Not Recommended for New Designs' designation does not impact existing production requirements. Ensure compatibility with existing board layouts and thermal constraints before procurement.

Selection Notes

Consider alternative components from the same series if new designs are required due to the discontinuation notice. Evaluate electrical parameters such as inductance and current rating against system specifications. Check for pin-out compatibility if replacing existing units on established boards.

Part Context

This component is part of the SS11V-CH family of common mode chokes. These filters are typically used to attenuate differential and common mode noise in AC power lines. The series is characterized by robust construction suitable for industrial and consumer electronics environments requiring reliable EMI performance.

Replacement Considerations

Official sources explicitly state this part is Not Recommended for New Designs. No specific substitute part numbers are provided in the available documentation. Engineers should consult KEMET for current equivalent recommendations.
