SS14X8X4.5W

Overview

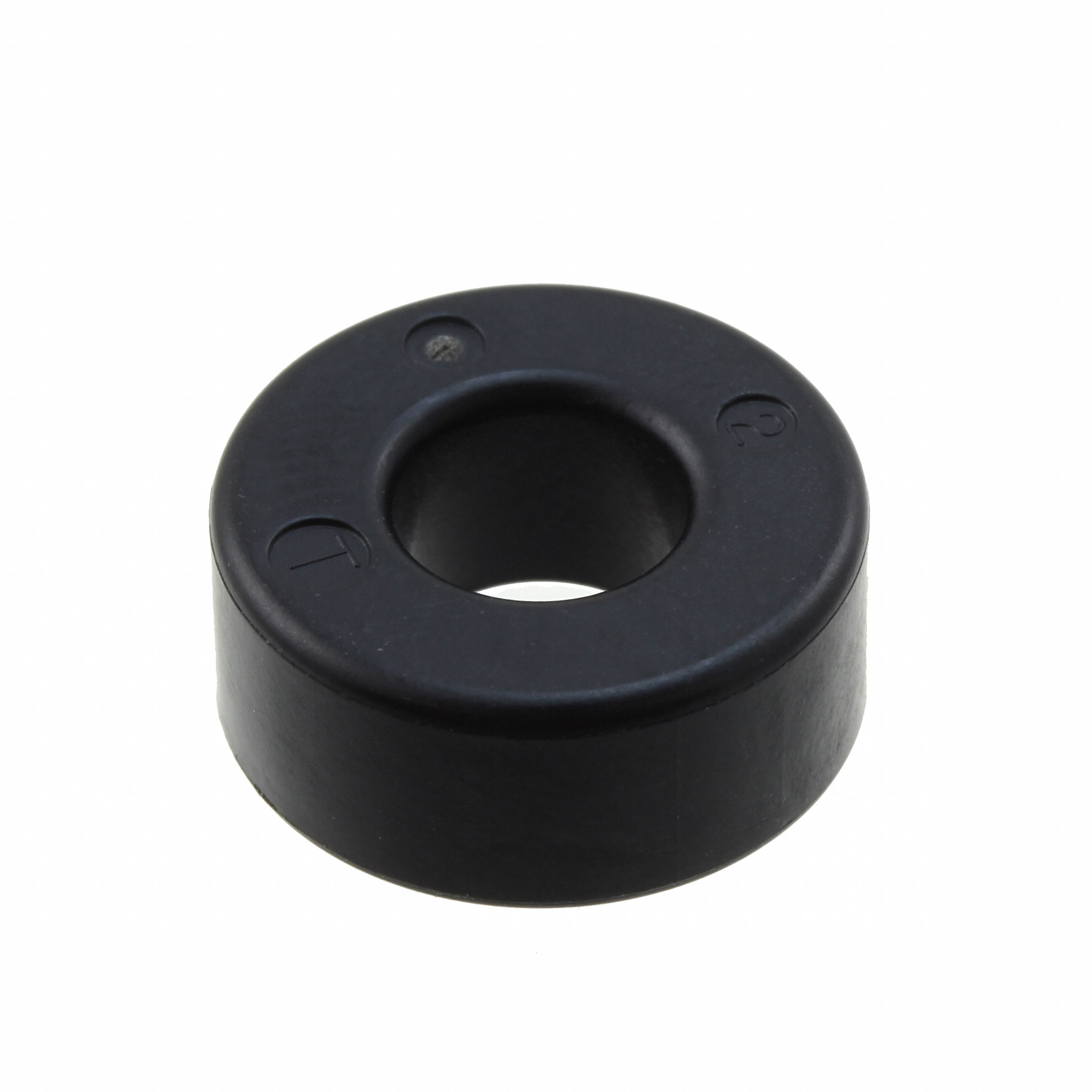

The SS14X8X4.5W is a solid free-hanging ferrite core manufactured by Toshiba Semiconductor and Storage, designed for cable shielding applications. It belongs to the Amobeads series of round cable ferrite filters. The component features an inner diameter of 0.268 inches (6.80mm), an outer diameter of 0.622 inches (15.80mm), and a length of 0.260 inches (6.60mm). These physical dimensions define its compatibility with specific cable sizes for electromagnetic interference suppression.

Feature Summary

• Solid free-hanging construction for secure attachment to cables
• Round cable ferrite design for uniform magnetic field distribution
• Amobeads series integration for standardized EMI filtering solutions

Applications

• Cable shielding against electromagnetic interference in electronic systems
• Suppression of high-frequency noise on signal and power lines
• EMI reduction in consumer and industrial equipment wiring

Procurement Notes

Verify the exact part number SS14X8X4.5W against official Toshiba Semiconductor and Storage documentation to confirm material composition and frequency characteristics. Ensure that the specified inner and outer diameters match the target cable assembly requirements. Cross-reference with authorized distributors to validate supply chain authenticity and avoid counterfeit components.

Selection Notes

Select this ferrite core based on the required inner diameter of 6.80mm to ensure a snug fit around the specific cable gauge. Consider the outer diameter of 15.80mm for spatial clearance within the enclosure. Evaluate the application's frequency range to confirm suitability for the intended electromagnetic interference profile.

Part Context

This component is part of Toshiba Semiconductor and Storage's passive filter portfolio, specifically the Amobeads line. It serves as a passive electromagnetic interference suppressor, distinct from active semiconductor devices like MOSFETs or logic ICs also offered by the manufacturer. Its role is purely physical attenuation of high-frequency noise on conductors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ferrite cores by matching the inner diameter, outer diameter, and length specifications precisely.
