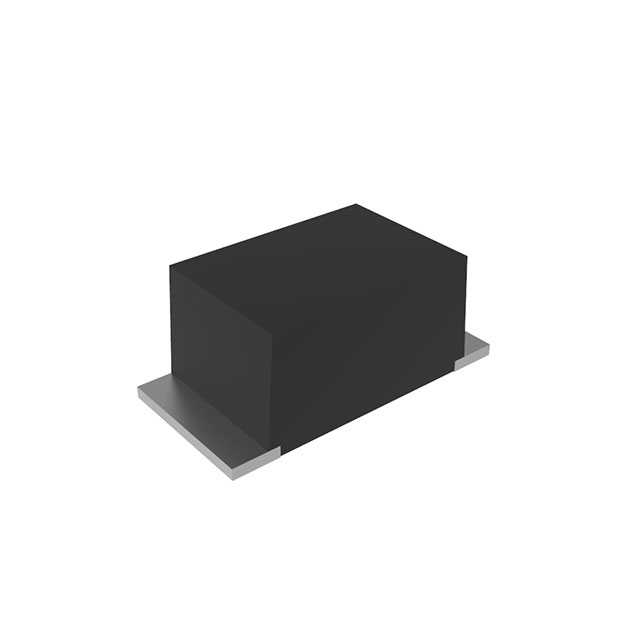

SS16FH-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE SCHOTTKY 60V 1A SOD323FH. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SS16FH-TP
- Description：DIODE SCHOTTKY 60V 1A SOD323FH
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：700 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 60 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：SC-90, SOD-323F
- Supplier Device Package：SOD-323FH
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SS16FH-TP
Single Diodes Overview
The SS16FH-TP is a Schottky barrier rectifier manufactured by Micro Commercial Components (MCC). It features a single diode configuration in a DO-221AC-2 package. Key electrical parameters include a forward current of 1 A, a repetitive reverse voltage of 60 V, and a maximum forward voltage of 700 mV. The device supports a forward surge current of 30 A and has a reverse current of 500 uA. It operates within a temperature range of -55 C to +150 C.
Single Diodes Feature Summary
- Schottky barrier technology for low forward voltage drop
- Silicon construction for reliable high-temperature operation
- Surface mount design suitable for automated assembly
Single Diodes Applications
- DC-DC converters
- Power supply circuits
- Free-wheeling diodes in inductive loads
Single Diodes Procurement Notes
Verify the specific suffix 'FH' against official MCC documentation to confirm package type and availability status. Cross-reference with authorized distributors to ensure component authenticity and check for end-of-life notifications or discontinuance alerts prior to procurement decisions.
Single Diodes Selection Notes
Select this component when a 1 A Schottky rectifier with 60 V blocking capability is required in a compact surface-mount form factor. Ensure the application demands low forward voltage characteristics and can accommodate the specified thermal operating range. Confirm package compatibility with existing PCB footprints.
Single Diodes Part Context
This part belongs to the SS16 series of Schottky rectifiers from Micro Commercial Components. It is designed for general-purpose rectification applications requiring efficient power conversion. The series typically offers various voltage ratings within the same current class.
Single Diodes Replacement Considerations
Public sources indicate the SS16FH-TP is obsolete. Verify available substitutes such as the SS16FL-TP or other compatible Schottky rectifiers with identical electrical specifications and package dimensions from authorized manufacturers.
