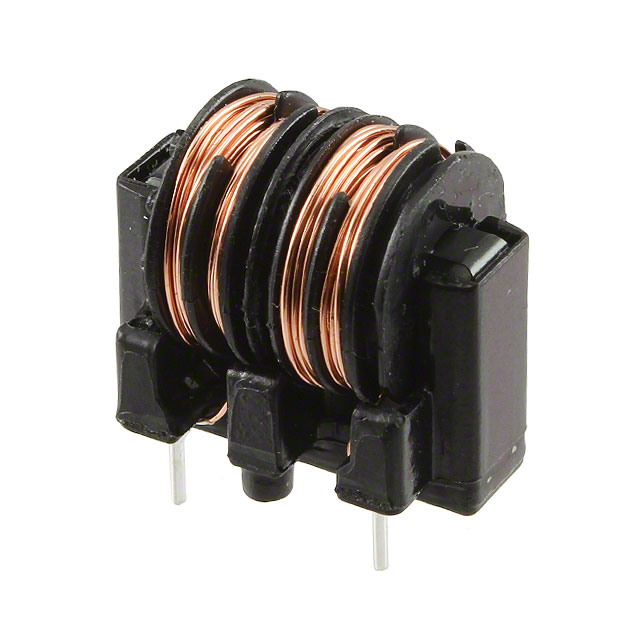

SS17VA-R10025

$0.91

Description：CMC 2.5MH 1A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk,Bulk

SKU:165c413c9bf9 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.5MH 1A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk,Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：380mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.472" W (17.00mm x 12.00mm)
Height (Max)：0.634" (16.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 1 kHz
Qualification：-
Grade：-

Download product information

SS17VA-R10025

Overview

The SS17VA-R10025 is a radial through-hole common mode choke from KEMET's SS17VA series. It features an inductance of 2.5 mH and a DC current rating of 1 A with a DCR of 380 mOhms. The component supports a maximum AC voltage of 250 VAC and operates up to +120 °C. Dimensions are 17 mm x 12 mm x 15.1 mm.

Feature Summary

Provides common mode noise filtering for power lines
Radial leaded construction for through-hole mounting
Designed for high reliability in commercial and automotive applications

Applications

Power line EMI suppression
Common mode filter circuits
Automotive electronics protection

Procurement Notes

Verify the specific part number SS17VA-R10025 against official KEMET documentation to confirm inductance, current rating, and physical dimensions. Ensure compatibility with your circuit's voltage and thermal requirements before procurement.

Selection Notes

Select this component when a 2.5 mH inductance at 1 A is required for common mode noise reduction. Consider the 250 VAC rating and +120 °C operating temperature for suitability in your specific environment.

Part Context

Part of KEMET's SS17VA series of radial leaded common mode chokes. Designed for robust performance in demanding environments, offering stable filtering characteristics for power supply inputs and signal lines.

Replacement Considerations

Consult KEMET's official substitution guide for verified equivalents. Do not assume cross-compatibility with other series without verifying electrical and mechanical specifications.
