Product Detailed Parameters

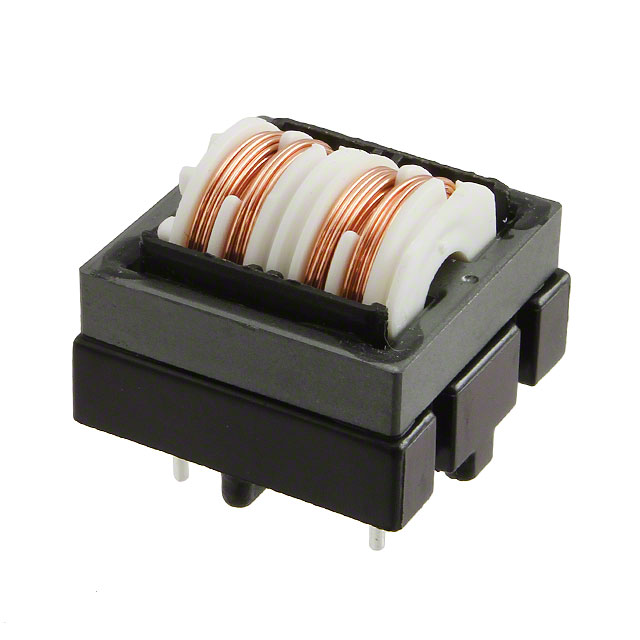

- Description：CMC 20MH 600MA 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk,Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：600mA
- DC Resistance (DCR) (Max)：930mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.866" L x 0.866" W (22.00mm x 22.00mm)
- Height (Max)：0.728" (18.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：20 mH @ 1 kHz
- Qualification：-
- Grade：-
Download product information
Overview
The KEMET SS20H-R06200 is a standard common mode filter classified as an AC line filter. It utilizes a common mode choke design to suppress electromagnetic interference in alternating current circuits. The component is engineered for integration into power supply lines where noise reduction is required. It features a robust construction suitable for industrial and commercial applications requiring reliable signal integrity and power quality maintenance.
Feature Summary
- Common mode choke architecture for effective noise suppression
- Designed for AC line filtering applications
- Standard classification for general-purpose EMI mitigation
Applications
- AC power line filtering
- Electromagnetic interference suppression
- Industrial equipment noise reduction
Procurement Notes
Verify the specific electrical parameters such as rated current, impedance values, and operating temperature range against the official KEMET datasheet before procurement. Confirm that the physical dimensions and mounting style match the target PCB or chassis requirements. Ensure compliance with relevant safety standards applicable to the end product environment.
Selection Notes
Select this component when standard common mode attenuation is sufficient for the application. Evaluate the required current handling capacity and frequency response characteristics against the system's noise profile. Consider thermal management requirements and spatial constraints within the assembly layout during the selection process.
Part Context
This part belongs to the KEMET AC line filter portfolio, specifically categorized under common mode chokes. These components are designed to address conducted emissions in power systems. The series provides standardized solutions for manufacturers seeking to meet regulatory limits on electromagnetic interference without custom winding specifications.
