Product Detailed Parameters

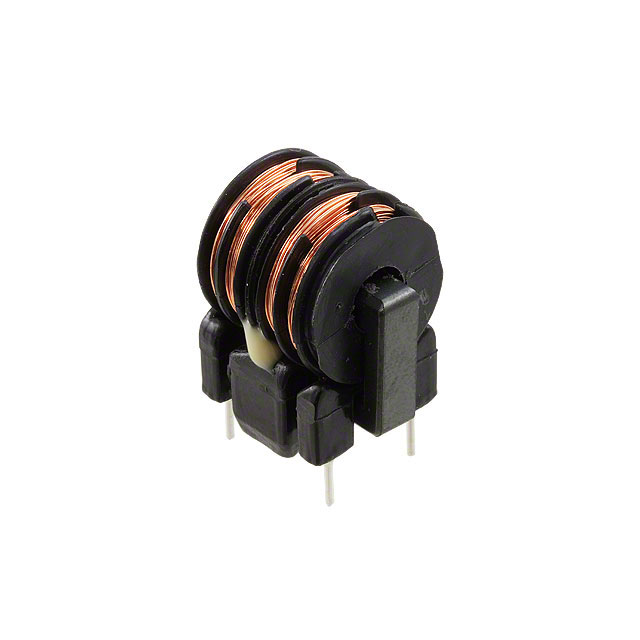

- Description：CMC 2.4MH 2A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：150mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.807" L x 0.650" W (20.50mm x 16.50mm)
- Height (Max)：0.965" (24.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2.4 mH @ 1 kHz
- Qualification：-
- Grade：-
Download product information
Overview
The KEMET SS21V-200024 is a through-hole common mode choke belonging to the SS21V series. It features a bobbin style construction with an inductance of 2.4 mH and a DC current rating of 2 A. The component has a maximum DC resistance of 0.15 ohms and operates within a temperature range of -40°C to 120°C.
Feature Summary
- Provides common mode filtering for power line applications
- Designed to address electromagnetic interference (EMI)
- Utilizes through-hole bobbin construction
Applications
- Power line filtering
- Electromagnetic interference suppression
- AC line filter circuits
Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with required operating temperatures and current loads before integration into designs.
Selection Notes
Select this component for applications requiring common mode noise reduction in power circuits. Consider the 2A current rating and 0.15 ohm resistance when designing for thermal management and voltage drop constraints.
Part Context
This component is part of the SS21V series from KEMET, specialized for common mode chokes in power electronics. It serves as a passive filter element to mitigate conducted EMI in AC line applications.
FAQ
What is the maximum DC current rating?
The maximum DC current rating is 2 A.
What is the inductance value?
The inductance is 2.4 mH.
