SS21VB-R030613

Overview

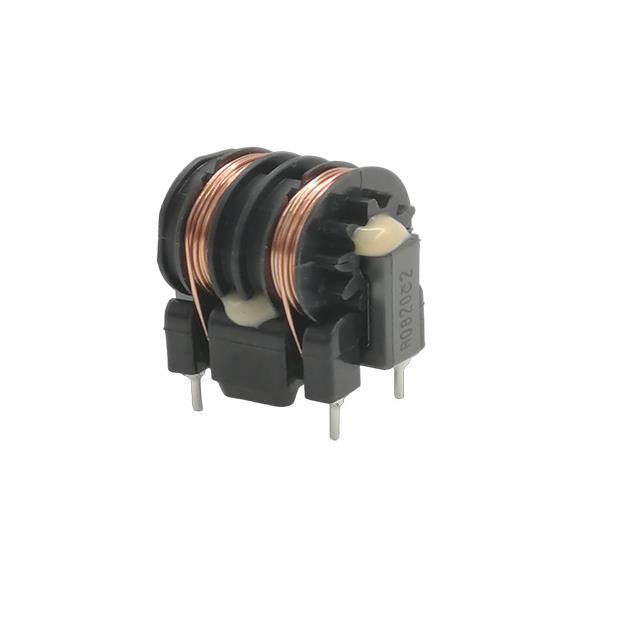

The KEMET SS21VB-R030613 is a through-hole common mode choke belonging to the SS21VB series. It features an inductance of 61.3 mH and a DC current rating of 300 mA. The component has a maximum DC resistance of 4.146 ohms and operates within a temperature range of -40°C to +120°C.

Feature Summary

• Provides common mode noise filtering for power applications
• Utilizes a through-hole bobbin construction for secure mounting
• Designed for high-temperature operation up to 120°C

Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Noise reduction in industrial control systems

Procurement Notes

Verify the manufacturer source, as this part number appears associated with both KEMET and YAGEO documentation. Confirm the specific datasheet version and RoHS compliance status before procurement. Ensure the supplier provides official test reports matching the 61.3 mH inductance and 300 mA current rating specifications.

Selection Notes

Select this component when a 61.3 mH inductance is required for common mode noise attenuation at currents up to 300 mA. The through-hole package suits PCBs requiring robust mechanical anchoring. Verify that the 4.146 ohm DC resistance fits the circuit's voltage drop constraints and that the operating temperature range covers the environmental conditions.

Part Context

This component is part of the SS21VB series of common mode chokes manufactured by KEMET. These chokes are designed for general-purpose EMI filtering in power lines. The series typically offers various inductance values and current ratings to suit different power supply requirements.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
