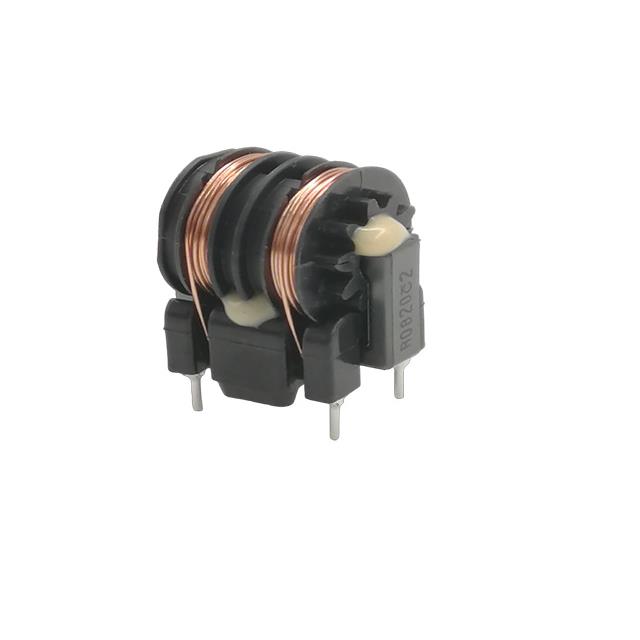

SS21VB-R060125

$1.70

Description：CMC 12.5MH 600MA 2LN TH
Series：SS
Mfr：KEMET
Package：Tray

SKU:bcb35f7b3099 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 12.5MH 600MA 2LN TH
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：842mOhm
Voltage Rating - DC：-
Voltage Rating - AC：500V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.811" L x 0.661" W (20.60mm x 16.80mm)
Height (Max)：1.004" (25.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：12.5 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS21VB-R060125

Overview

The KEMET SS21VB-R060125 is a radial lead common mode choke designed for EMI/RFI suppression. It features an inductance of 12.5 mH and a maximum DC current rating of 0.6 A (600 mA). The component has a maximum DC resistance of 0.842 Ohms and operates within a temperature range of -40°C to +120°C. It supports voltage ratings up to 500V AC.

Feature Summary

Utilizes proprietary S15H ferrite material for effective noise attenuation
Radial package configuration facilitates through-hole mounting
RoHS compliant construction without SVHC substances

Applications

AC power line filtering
DC-DC converter output stages
General EMI suppression circuits

Procurement Notes

Verify the specific suffix R060125 against official KEMET documentation to confirm the exact electrical parameters, particularly the 12.5mH inductance and 0.6A current rating. Ensure the radial lead form factor matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when high inductance values are required for low-frequency noise suppression in compact radial packages. The 0.6A current rating suits moderate power applications, while the wide operating temperature range ensures reliability in demanding thermal environments.

Part Context

This part belongs to the KEMET 21VB series of common mode chokes. The series utilizes specialized ferrite materials to provide high impedance across broad frequency ranges, making it suitable for stringent electromagnetic interference compliance standards in electronic equipment.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching inductance, current rating, and physical dimensions with alternative manufacturers' datasheets.
