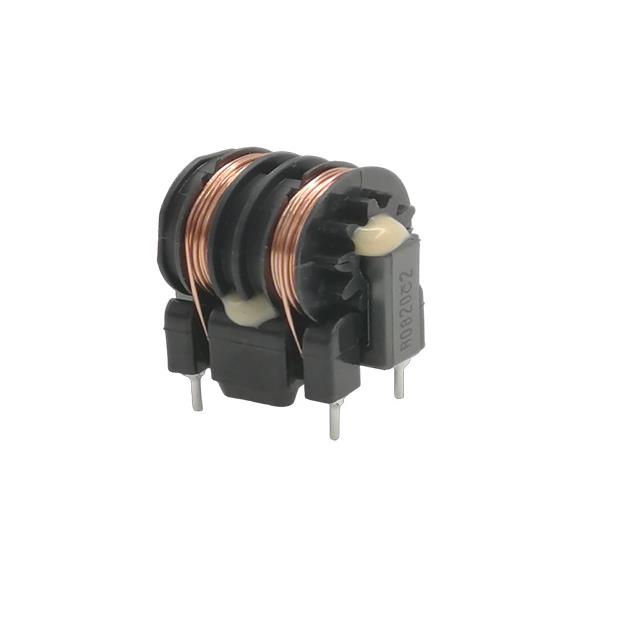

SS21VB-R180018

$1.70

Description：CMC 1.8MH 1.8A 2LN THROUGH HOLE
Series：SS
Mfr：KEMET
Package：Tray

SKU:b2bf5e2a2237 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.8MH 1.8A 2LN THROUGH HOLE
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.8A
DC Resistance (DCR) (Max)：124mOhm
Voltage Rating - DC：-
Voltage Rating - AC：500V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.811" L x 0.661" W (20.60mm x 16.80mm)
Height (Max)：1.004" (25.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.8 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS21VB-R180018

Overview

The KEMET SS21VB-R180018 is a common mode choke belonging to the SS21VB series. It features an inductance of 1.8 mH and a DC current rating of 1.8 A. The component has a maximum DC resistance of 0.124 Ohms. It operates within a temperature range of -40°C to +120°C.

Feature Summary

Provides common mode noise filtering for differential signal lines
Designed for high current applications with specified DC rating
Constructed for industrial grade operational reliability

Applications

Industrial power supply input filtering
Motor drive circuit noise suppression
AC/DC converter EMI mitigation

Procurement Notes

Verify the complete part number including suffixes against official KEMET documentation to ensure correct inductance, current rating, and termination style. Confirm that the 1.8 mH inductance and 1.8 A current specifications match the specific design requirements before procurement. Check for any recent obsolescence notices or alternative package options in the manufacturer's latest release notes.

Selection Notes

Select this component when a 1.8 mH common mode choke with a 1.8 A continuous current capability is required. Ensure the operating environment stays within the -40°C to +120°C range. Verify that the 0.124 Ohm DC resistance meets the voltage drop constraints of the target circuit. Compare performance against other SS21VB series variants if different inductance values are needed.

Part Context

This component is part of the KEMET SS21VB series of common mode chokes. These components are engineered for robust noise suppression in demanding environments. The series typically offers standardized inductance values and current ratings suitable for various industrial and commercial electronic applications requiring reliable EMI filtering.

Replacement Considerations

Consult KEMET datasheets for direct replacements within the SS21VB series with matching 1.8 mH and 1.8 A specifications. Cross-reference with other manufacturers' common mode chokes ensuring identical inductance, current rating, and physical footprint compatibility.
