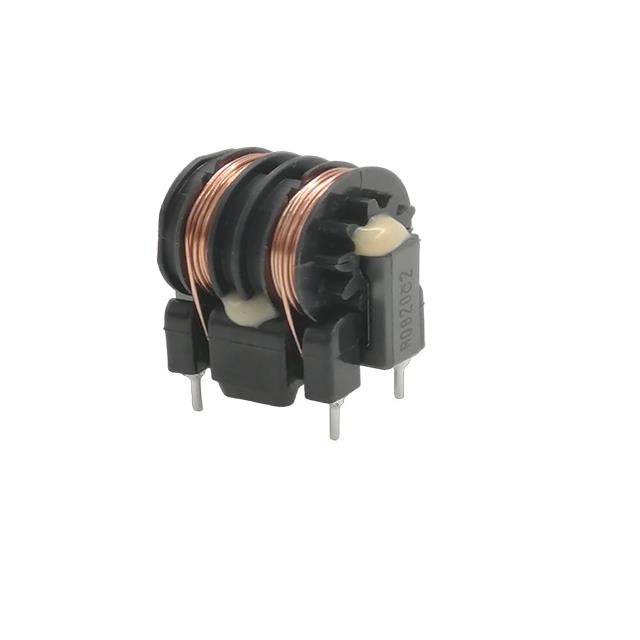

SS21VB-R300007

$1.70

Description：CMC 720UH 3A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray

SKU:a3408fc5c4fa Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 720UH 3A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：54mOhm
Voltage Rating - DC：-
Voltage Rating - AC：500V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.811" L x 0.661" W (20.60mm x 16.80mm)
Height (Max)：1.004" (25.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：720 µH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS21VB-R300007

Overview

The KEMET SS21VB-R300007 is a through-hole common mode choke from the SS21VB series. It features an inductance of 720 µH and a maximum DC current rating of 3 A. The component has a maximum DC resistance of 0.054 Ω and operates within a temperature range of -40°C to +120°C.

Feature Summary

Provides common mode noise suppression for AC line applications
Designed for through-hole PCB mounting with bobbin construction
Rated for high continuous DC current operation

Applications

AC line filtering
Electromagnetic interference suppression
Power supply input stages

Procurement Notes

Verify the manufacturer part number SS21VB-R300007 against official KEMET documentation to confirm specifications. Ensure compatibility with required voltage ratings, current loads, and thermal operating conditions before procurement.

Selection Notes

Select this component for applications requiring 720 µH common mode inductance at 3 A. Verify that the 0.054 Ω DC resistance and -40°C to +120°C operating range meet system requirements.

Part Context

This component belongs to the KEMET SS21VB series of common mode chokes. These components are designed for power line filtering and electromagnetic interference reduction in electronic equipment.
